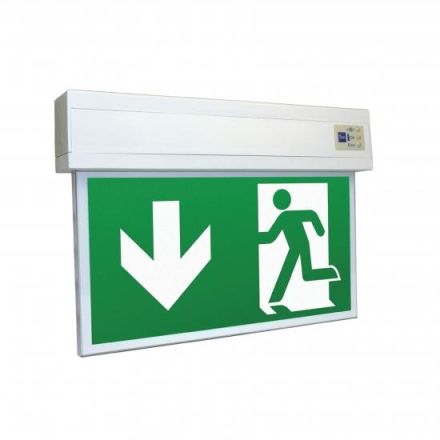

RP-Technik KSU013SC EB+SC incl. picto set 230V/AC 3h IP40 LED emergency light LB19

In stock
SKU: 497999
€92.77
Into a basketIn the basketGo

Overview

The slim, innovative plastic LED disc light for universal mounting (wall/ceiling/ceiling recessed/boom). Light consisting of just 3 parts for easy installation. Can be mounted without tools on the integrated ceiling or wall quick mounting system. No mains voltage when dismantling the light. Suitable for permanent or standby operation. Planning security thanks to tool-free, variable use of the pictograms on site. Pictogram set (left, right, bottom, neutral) included as standard. The light is characterized by an elegant design. The structural lifespan is more than 50,000 hours. The emergency light burn time is more than 3 hours. The LED technology is equipped with white high-power SMD LEDs. The luminaire is suitable for through-wiring.

Property Value
Housing color: white
Protection rating (IP): IP54
Protection class: II
Voltage type: AC
Detection range: 22 m
Color temperature: 6500 K
Length: 34 mm
Width: 250 mm
Height/depth: 174 mm
Battery type: other
Light source: LED not replaceable
Impact resistance: IK03
Socket: other
Nominal voltage: 230 V
With remote switch connection: no
Cover material: without cover
With light source: yes
Switching type: maintained/standby mode
Monitoring device: automatic self-test
Mounting type: wall mounting/ceiling mounting
Housing material: plastic
Type of marking: one-sided/two-sided
Suitable for Type of marking: other
Supply: decentralized (single battery)
Function: Escape route marking
With pictogram: yes

Characteristics

Circuit typeMaintained/standby mode
HABEB+SC incl. pictoset 230V/AC 3h IP40
ManufacturerRP-Technik
HANKSU013SC
GTIN4260349824026
Width250 mm
Color temperature6500K
VersionOther
FunctionEscape route marking
Housing colorWhite
Height/Depth174 mm
LampsLED not replaceable
Length34 mm
With light sourceYes
Mounting typeWall mounting/ceiling mounting
Nominal voltage230V
Impact resistanceIK03
IP protection)IP54
Protection classII
Voltage typeAC
Cover materialWithout cover
Housing materialPlastic
RP-Technik KSU013SC EB+SC incl. picto set 230V/AC 3h IP40 LED emergency light LB19
RP-Technik KSU013SC EB+SC incl. picto set 230V/AC 3h IP40 LED emergency light LB19
€92.77
Into a basketIn the basketGo
