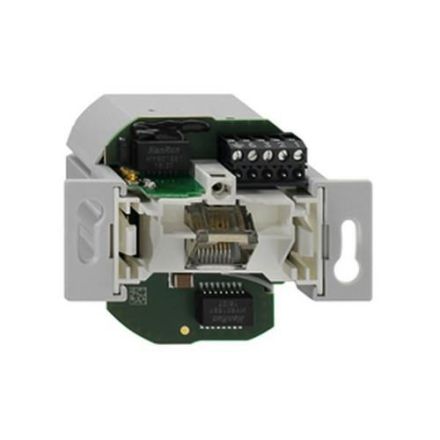

300MB WLAN access point, flush-mounted, with RJ45 front port, pure white (similar to RAL 9010), - front RJ45 plug-in opening for a data terminal, - installation in standard flush-mounted device sockets, - nominal operating voltage: 100-240 V~/50-60 Hz, - power consumption: 3 VA typical, - temperature range: -5°C - 40° C, - connection of power supply via side plug-in terminals (1.5mm), - function display via illuminated RJ45 plug-in opening, - connection of data cable via front screw/plug-in terminal, - transmission rate RJ45/data cable: 100 Mbit/s, - wireless standards: IEEE 802.11 b/g/n (300 Mbit/s), - security and encryption: WPA, WPA2, MAC filtering, - with timer and time switch function, - guest WLAN can be switched on, - central management function, - reset via reset magnet, - mesh functionality, - suitable for UAE design covers of the switch industry (Berker, Busch-Jaeger, GIRA, Jung, Merten, etc.)
| Property | Value |
| Max. Transfer rate: | 150 Mbit/s |
| Managed: | yes |
| Number of 10/100 Mbps LAN ports: | 2 |
| VPN security: | yes |
| Bridge function: | yes |
| Repeater function: | yes |
| Height: | 80 mm |
| Width: | 80 mm |
| Depth: | 50 mm |
| Ethernet: | yes |
| Encryption: | WPA2 |
| Wireless protocol: | IEEE 802.11 b/g/n |
| Installation: | yes |
| Frequency band: | 2.4 GHz |
| Protection class (IP): | IP21 |
| Flush-mounted installation: | yes |
