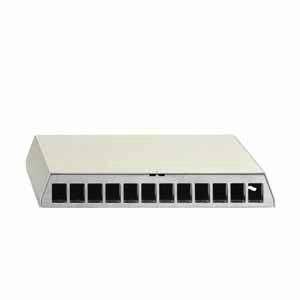

Rutenbeck 23911212 PP-UM-Cat.6A iso 10G-12/12 Ap rw patch panel

In stock
SKU: 841069
€112.88
Into a basketIn the basketGo

Overview

Cat.6A iso patch panel with 12 universal modules UM-Cat.6A iso 10G, shielded, surface-mounted, for table/wall mounting, REG mounting with DIN rail adapter 10010070, pure white (similar to RAL 9010), - quick-mounting cover by snapping in place, - fully shielded metal housing, - additional strain relief option for the cables using cable ties, - for table/wall mounting, - can be labelled with character holder 23510009, Module properties:, - Cat.6A iso universal module, shielded, - for use in 10 Gigabit Ethernet networks (transmission bandwidth up to 500 MHz), - 1 x RJ45 plug-in opening, - fits in standard keystone openings (14.8 x 19.3 mm), - die-cast zinc design, - nickel-plated housing surface, - 360° strain relief and shielding, - for data cables with 6-10 mm diameter, - solid conductors: IDC terminals for one conductor 0.51 - 0.64 mm Ø, AWG 24-22, outer diameter 0.7-1.6 mm (PE), - flexible conductors: IDC terminals for one conductor 0.13-0.22 mm Ø, AWG 26 (PE-Foamskin), AWG 24 (PE-solid), outer diameter 0.9-1.1 mm (PE), - 1 wire per contact, can be reused 10 times (with the same or larger cross-section), - bending radius-optimized feed of the connecting cables (30°), - defined earth connection possible using standard flat plug connectors, - assembly without special pliers/tools, - integrated dust protection cap (removable/replaceable if required), - color code T568A and T568B according to TIA/EIA-568-B.2, - suitable for PoE++ / 4PPoE according to IEEE 802.3bt, - UPOE compliant, - HDBaseT compliant, - in accordance with the following standard requirements:, - ISO/IEC 11801, Cat.6A, shielded, - DIN EN 50173-1, Cat.6A, shielded, - ANSI TIA/EIA-568-C.2 Category 6A, - DIN EN 60603-7-51, 500 MHz, shielded, - service life > 750 mating cycles, - RJ11/12 mismating protected, - GHMT counter-certified

Property Value
Color: white
Mounting type: other
Number of sockets/couplings: 12
Height: 38 mm
Width: 240 mm
Depth: 110 mm
Suitable for number of sockets/couplings: 12
Category: 6
Connection type: LSA
Connector type: RJ45 8(8)
Shielded: yes
RAL number: 9010

Characteristics

ShieldedYes
Category6
Connector typeRJ45 8(8)
HABPP-UM-Cat.6A iso 10G-12/12 Ap rw
ManufacturerRUTENBECK
HAN23911212
GTIN4043921666623
Connection typeLSA
Width240 mm
ColorWhite
Suitable for number of sockets/couplings12
Height38 mm
Mounting typeOther
RAL number9010
Depth110 mm
