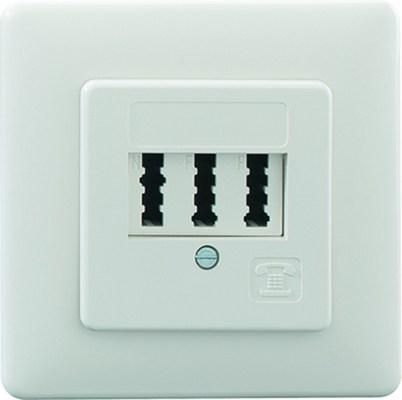

TAE connection box, NFF, flush-mounted, for 2 telephones and 1 additional device, 3 x 6-pin, 2 x 6 screw contacts, with expanding claws, pure white (similar to RAL 9010), - metal support ring, - with expanding claws, - contacts made of nickel silver or brass, tinned, - gold-plated contact surfaces, - nominal voltage: 125 V DC/AC, - circuit load: max. 10 VA, - insulation resistance: > 200 MO, - contact resistance: < 20/30 mO, - dielectric strength: 1000 V, 50 Hz, 1 min., - service life: > 100,000 plug-in cycles, - metric screws for central pieces, - suitable for TAE design covers from the switch industry (Berker, Busch-Jaeger, GIRA, Jung, Merten, etc.)
| Property | Value |
| Version: | TAE 2x6/6 NFF |
| Connection type: | screw |
| Fastening type: | screws |
| Design capable: | yes |
| Color: | white |
| RAL number: | 9010 |
| Central plate: | yes |
| Width: | 80 mm |
| Height: | 80 mm |
| Depth: | 31 mm |
