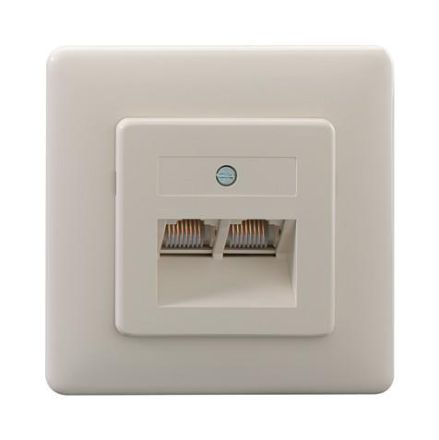

UAE connection box, 2-way, flush-mounted, with LSA connection contacts, 2 x 8-pin, 2 x 8 LSA contacts, with plastic support bars, with spreading claws, pure white (similar to RAL 9010), - 8-pin socket elements, for 6- and 8-pin plugs, - RJ11/12 compatibility without additional reducing elements, - plastic support bars, - with spreading claws, - plug opening inclined downwards, - screw contacts for a conductor up to 1mm Ø, 2 wires per contact, - LSA terminals for a conductor 0.4-0.63 mm Ø, AW 26-22, can be re-used > 50 times, - gold-plated contact surfaces, - nominal voltage: 125 V, - nominal current: 1 A at 50° C, - dielectric strength: 1000 V, 50 Hz, 1 min., - contact resistance: < 20 mO, - according to the following standard requirements:, - TIA/EIA-568-B.2-2001, Cat. 3, - service life: > 2500 mating cycles, - suitable for UAE design covers of the switch industry (Berker, Busch-Jaeger, GIRA, Jung, Merten, etc.)
| Property | Value |
| Designable: | yes |
| Category: | 3 |
| Mounting type: | screws |
| Outlet direction: | slanted |
| Channel installation: | yes |
| Connector type: | 2x RJ45 8(8) |
| Suitable for number of sockets/couplings: | 2 |
| Color coding: | yes |
| Connection type: | LSA |
| RAL number: | 9010 |
| Separate earth connection: | yes |
| With sockets/couplings: | yes |
| Protection class (IP): | IP20 |
| Color: | white |
| Mounting type shield connection: | screw |
| Device width: | 80 mm |
| Device height: | 80 mm |
| Device depth: | 30 mm |
