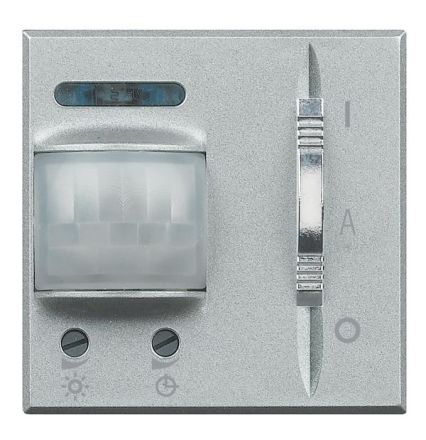

Bticino HC4432 motion detector 230V 2M, (grey)

In stock

SKU: 250514

Price on request

€232.76

€0

Overview

Passive infrared motion detector with adjustable brightness and switch-off delay from 30 seconds to 10 minutes, front slide switch On / Off / Automatic - normally open contact 6 A (ohmic) power supply 230 V ac (3-wire connection), input for external control contact - 2-module, color: aluminum

Property	Value
Design:	motion detector
Color:	gray
Nominal voltage:	230 V
Material:	plastic
Mounting type:	flush-mounted
Protection class (IP):	IP20
Max. switching capacity:	1380 W
Voltage type:	AC
Max. range to one side:	6 m
Min. Duty cycle:	30 s
Creep-under protection/rear field monitoring:	no
Temperature:	5 to 40 °C
Response brightness adjustable:	yes
Max. Frontal range:	6 m
Optimal installation height:	1.2 m
Surface finish:	glossy
Surface:	other
Material quality:	thermoplastic
Detection field diameter on floor:	3 m
Detection angle horizontal:	105 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
Extension input:	no
Antibacterial treatment:	no

Characteristics

Bridging switchNo

With signal unitNo

Forced shutdownYes

Manufacturer

HANHC4432

GTIN8012199745664

Dimming function with dimming insertNo

Alarm functionNo

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishGlittering

Detection field diameter on floor3m

Detection angle horizontal105°

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Constant light controlNo

Max. range frontal6m

Max. range to one side6m

Max. switching capacity1380W

Min. duty cycle30s

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceOther

Optimal mounting height1.2m

IP protection)IP20

Voltage typeAC

Teach function for response brightnessNo

Temperature5 to 40 °C

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
