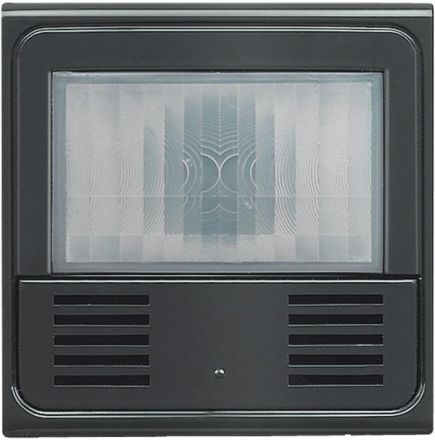

Bticino HS4433 motion detector Green Switch Dualtech anthracite, (black)

Bticino HS4433 motion detector Green Switch Dualtech anthracite, (black)

In stock

SKU: 249716

Price on request

€220.59

€0

Overview

3-wire DualTech motion detector with passive infrared and ultrasonic detection as well as brightness sensor. Can be used as a conventional motion detector (automatic ON - automatic OFF) or as a Green Switch (ON - automatic OFF via button on the device). Settings are made using the remote control Art. BMSO4003 or BMSO4005. 230VAC - neutral conductor required - relay output up to 8.5A max. - 2 modules, color: anthracite

Property	Value
Design:	Presence detector
Color:	black
Nominal voltage:	230 V
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 1275 lx
Protection class (IP):	IP20
Max. switching capacity:	2000 W
Type of voltage:	AC
Max. Range to one side:	8 m
Min. duty cycle:	5 s
Creep-under protection/rear field monitoring:	no
Temperature:	-5 to 45 °C
Adjustable response brightness:	yes
Max. Frontal range:	8 m
Optimal installation height:	1.2 m
Surface finish:	glossy
Surface:	other
Material quality:	thermoplastic
Detection field diameter on floor:	3 m
Detection angle horizontal:	180 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
Extension input:	no
Antibacterial treatment:	no

Characteristics

Bridging switchNo

With signal unitNo

Response brightness5 to 1275 lx

Forced shutdownYes

Manufacturer

HANHS4433

GTIN8005543442548

Dimming function with dimming insertNo

Alarm functionNo

Response brightness adjustableYes

Antibacterial treatmentNo

VersionPresence detector

Surface finishGlittering

Detection field diameter on floor3m

Detection angle horizontal180°

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Constant light controlNo

Max. range frontal8m

Max. range to one side8m

Max. switching capacity2000W

Min. duty cycle5s

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceOther

Optimal mounting height1.2m

IP protection)IP20

Voltage typeAC

Teach function for response brightnessNo

Temperature-5 to 45 °C

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
