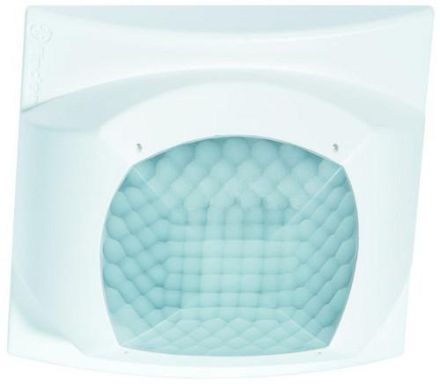

Finder 18.5D.8.230.0000 motion and presence detector

Finder 18.5D.8.230.0000 motion and presence detector

In stock

SKU: 274581

Price on request

€130.64

€0

Overview

Motion and presence detector with DALI interface, for installation in suspended ceilings, in installation boxes and for surface mounting. Suitable for the direct control of up to 8 DALI ballasts via broadcast command. Detection range at a height of 3 meters: movement 8 x 8 meters, presence 4 x 4 meters. Ambient light brightness threshold: 10 to 800 lx. Switch-off delay: 10 s to 35 minutes. Connection type: push-in terminals. Ambient temperature -10 to + 50° C. Light management functions: 1. COMFORT - daylight-dependent constant light regulation, 2. SIMPLE - on/off control with advance warning, 3. SAFE - on/off control with advance warning + residual level. Accessories for different types of installation are included in the packaging. Supply voltage: 110 to 230 V AC (50/60 Hz).

Property	Value
Depth:	66.7 mm
Width:	84 mm
Height:	84 mm
Design:	Motion detector
Color:	white
Rated voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	other
Response brightness:	10 to 500 lx
Protection class (IP):	IP40
Type of voltage:	AC
Max. Range to one side:	4 m
Scan angle:	360 °
Suitable for wall mounting:	yes
Min. duty cycle:	10 s
Max. Duty cycle:	35 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-10 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence range:	16 m²
Max. Range frontal:	4 m
Sensor type:	passive infrared
Optimal mounting height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	8 m
Control current:	7 mA
Number of Switching zones:	1
Horizontal detection angle:	360 °
Frequency:	50 to 60 Hz
Halogen-free:	yes
Constant light control:	yes
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bridging switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	yes
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	no
Installation depth:	31.6 mm
Installation diameter:	60 mm
Min. depth of device box:	46 mm

Characteristics

Bridging switchNo

With signal unitYes

Number of switching zones1

Response brightness10 to 500 lux

Forced shutdownNo

Scanning angle360 °

Forced switching onNo

Max. presence range16 m²

Manufacturer

HAN18.5D.8.230.0000

GTIN8012823407470

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width84 mm

Installation diameter60 mm

Installation depth31.6 mm

Detection field diameter on floor8m

Detection angle horizontal360°

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height84 mm

Constant light controlYes

Max. duty cycle35 min

Max. range frontal4m

Max. range to one side4m

Min. duty cycle10s

Min. depth of the device box46 mm

With DALI interfaceYes

With remoteNo

Mounting typeOther

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

RAL number (similar)9010

IP protection)IP40

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-10 to 50 °C

Depth66.7 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
