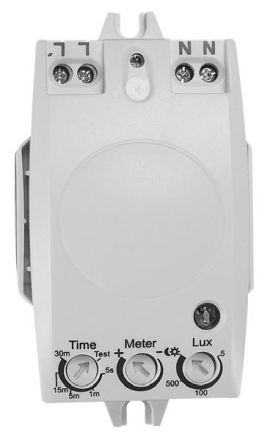

Grothe 94520 lamp installation motion detector, 94520

Grothe 94520 lamp installation motion detector, 94520

In stock

SKU: 493552

Price on request

€54.31

€0

Overview

The McGuard family now consists of 7 different model series, each one specializing in its own field and functionally coordinated with one another. The devices combine the reliability you expect from Grothe in everyday use with a high level of ease of installation and ease of use.Product features:High frequency motion detector Installation: Installation in lights or housing Response sensitivity. continuously adjustableTechnical data:Monitoring area 360° with 10m diameter (installation height 2.5m) Switch-on time from 5 sec. to 30 minSwitching capacity: Incandescent lamps: max. 1000W HV halogen lamps: max. 200VA NV halogen lamps: max. 200W Fluorescent lamps: max. 150W Energy saving lamps: max. 100W Supply voltage: 230V AC, 50/60Hz Frequency (sensor) 5.8 GHz Dimensions: 90 (W) x 51 (H) x 32 (D) mm Protection class: IP20 Color: whiteInstallation instructions:Note:

Property	Value
Depth:	27 mm
Width:	52 mm
Height:	90 mm
Design:	motion detector
Color:	white
Rated voltage:	230 V
RAL number (similar):	9003
Material:	plastic
Mounting type:	other
Response brightness:	5 to 2000 lx
Protection class (IP):	IP20
Max. switching capacity:	1000 W
Voltage type:	AC
Max. range to one side:	5 m
Scan angle:	360 °
Suitable for wall mounting:	yes
Min. duty cycle:	30 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	0 to 70 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. Frontal range:	8 m
Sensor type:	high frequency
Optimal installation height:	2.4 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	10 m
Horizontal detection angle:	180 °
Frequency:	5800 Hz
Halogen-free:	yes
Constant light control:	yes
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bridging switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Suitable for ceiling mounting:	yes
Connection type:	screw terminal
Antibacterial treatment:	no

Characteristics

Bridging switchNo

With signal unitNo

Response brightness5 to 2000 lx

Forced shutdownNo

Scanning angle360 °

HAB94520 Lamp installation

Manufacturer

HAN94520

GTIN4011459945206

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width52 mm

Detection field diameter on floor10m

Detection angle horizontal180°

Color

Remote controllableNo

Frequency5800Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height90 mm

Constant light controlYes

Max. duty cycle20 min

Max. range frontal8m

Max. range to one side5 m

Max. switching capacity1000W

Min. duty cycle30s

With DALI interfaceNo

With remoteNo

Mounting typeOther

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2.4m

RAL number (similar)9003

IP protection)IP20

Sensor typeHigh frequency

Voltage typeAC

Teach function for response brightnessNo

Temperature0 to 70 °C

Depth27 mm

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
