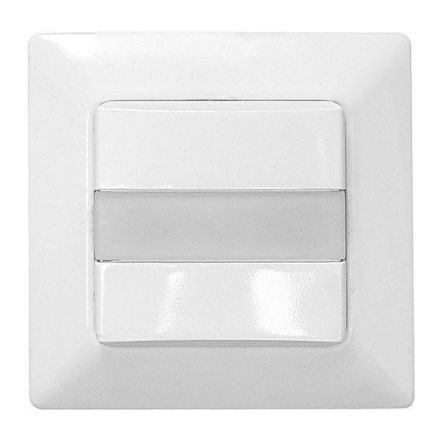

Grothe 94522 flush-mounted motion detector, 94522

In stock

SKU: 493551

Price on request

€86.71

€0

Overview

The McGuard family now consists of 7 different model series, each one specializing in its own field and functionally coordinated with one another. The devices combine the reliability you expect from Grothe in everyday use with a high level of ease of installation and ease of use.Product features:Passive infrared motion detector Cavity wall boxes Installation Response sensitivity. Continuously adjustableTechnical data:Monitoring range 180° (8 m to the front and 6 m to the side) at a mounting height of 1.2 m) Switch-on time from 10 seconds to 30 minutesSwitching capacity: Incandescent lamps: max. 2000W HV halogen lamps: max. 1000W NV halogen lamps: max. 1000VA/ 600VA (magnetic) max. 1000VA / 900W Fluorescent lamps: max. 900VA / 100F LED lamps: max. 400W Energy saving lamps: max. 600VA / 400W Supply voltage: 220V - 240VAC, 50/60Hz Frequency (sensor) 5.8 GHz Dimensions: 90 (W) x 51 (H) x 32 (D) mm Protection class: IP20 Color: whiteInstallation instructions:Note:

Property	Value
Depth:	52 mm
Width:	82 mm
Height:	82 mm
Design:	Motion detector
Color:	white
Rated voltage:	230 V
RAL number (similar):	9003
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	10 to 2000 lx
Protection class (IP):	IP40
Max. switching capacity:	2000 W
Type of voltage:	AC
Max. Range to one side:	4 m
Scan angle:	180 °
Suitable for wall mounting:	yes
Min. duty cycle:	30 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	0 to 45 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. Frontal range:	8 m
Sensor type:	passive infrared
Optimal installation height:	2.4 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Horizontal detection angle:	180 °
Frequency:	50 to 60 Hz
Halogen-free:	yes
Constant light control:	yes
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Suitable for ceiling mounting:	no
Connection type:	screw terminal
Antibacterial treatment:	no
Installation width:	45 mm
Installation depth:	45 mm
Installation length:	35 mm

Characteristics

Bridging switchNo

With signal unitNo

Response brightness10 to 2000 lx

Forced shutdownNo

Scanning angle180 °

HAB94522 flush-mounted

Manufacturer

HAN94522

GTIN4011459945220

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width82 mm

Installation width45 mm

Installation length35 mm

Installation depth45 mm

Detection angle horizontal180°

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height82 mm

Constant light controlYes

Max. duty cycle20 min

Max. range frontal8m

Max. range to one side4m

Max. switching capacity2000W

Min. duty cycle30s

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2.4m

RAL number (similar)9003

IP protection)IP40

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature0 to 45 °C

Depth52 mm

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
