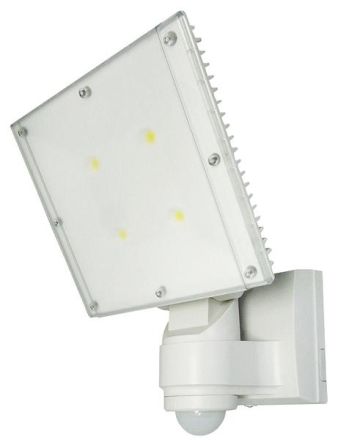

Grothe 94559 LED floodlight motion detector, 94559

Grothe 94559 LED floodlight motion detector, 94559

In stock

SKU: 493548

Price on request

€82.80

€0

Overview

The McGuard family now consists of 10 different model series, each one specializing in its own field and functionally coordinated with one another. The devices combine the reliability in everyday use that Grothe is known for with a high level of ease of installation and ease of use.Product features:McGuard LED RL692JV WSLED floodlight with infrared motion detector 4 integrated high power LEDs Beam angle 25° Die-cast aluminum housing with V2A screws Vertical installation Sensitivity: continuously adjustable. Easy-to-install connection box.Technical specifications:Monitoring range 240° at 10m Switch-on time: 3 sec.-15 min Range adjustable from 2 - 10 mLED: 4400 lumen, 5000K, daylight white Supply voltage 230V AC, 50Hz Effective power: 0.8W (standby mode) 61 W (IR LED on) Dimensions: 340 x 205 x 150mm Protection class: IP55 (suitable for outdoor use) Color: whiteInstallation instructions:Note:

Property	Value
Max. System power:	62 W
Rated luminous flux according to IEC 62722-2-1:	4400 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP55
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	340 mm
Width:	205 mm
Height/depth:	150 mm
With motion detector:	yes
Suitable for wall mounting:	yes
Color temperature:	5000 K
Nominal voltage:	220 to 240 V
Beam angle:	extremely wide beam >80°
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	electronic transformer
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	white
Luminous flux:	4400 lm
Cover material:	other
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	yes
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	other
Brushed surface:	no
Dimming depends on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Protection class (NEMA):	3
Connectable conductor cross-section:	2.5 mm²
Connection type:	screw terminal
Suitable for computer workstations in accordance with EN 12464-1:	no

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

Connectable conductor cross-section2.5 mm²

HAB94559 LED floodlight

Manufacturer

HAN94559

GTIN4011459945596

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Rated luminous flux according to IEC 62722-2-14400lm

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Width205 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature5000K

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth150 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux4400lm

Light distributorReflector

Light distributionSymmetrical

Length340 mm

Max. system performance62W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

Nominal voltage220 to 240 V

SurfaceOther

Brushed surfaceNo

Without dimming functionYes

ReflectorWhite

IP protection)IP55

Protection class (NEMA)3

Protection classII

Voltage typeAC

AdjustabilityRotatable and pivotable

Cover materialOther

Housing materialAluminum
