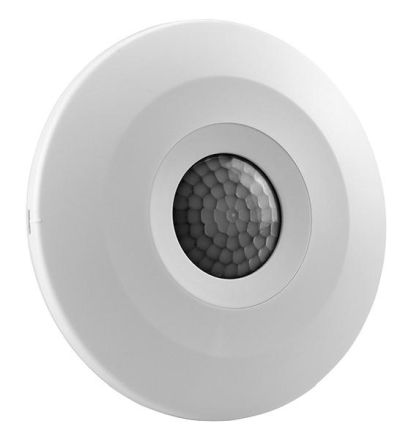

Grothe McGuard BM DAV 360 degrees 7m white motion detector, 94504

Grothe McGuard BM DAV 360 degrees 7m white motion detector, 94504

In stock

SKU: 492736

Price on request

€41.75

€0

Overview

The McGuard family now consists of 7 different model series, each specialised in its own field and functionally coordinated with one another. The devices combine the reliability you expect from Grothe in everyday use with a high level of ease of installation and ease of use.Product features:Passive infrared motion detectorFlat constructionResponse sensitivity. Continuously adjustable noise detection after motion detectionTechnical data:Monitoring area 360° with 7m diameter at a mounting height of 2.5m Switch-on time from 30 sec. to 20 min. Volume for triggering adjustable: Off, 45dB to 70dBSwitching capacity: Incandescent lamps: max. 1000W Fluorescent lamps: max. 500VA LED lamps: max. 250W Supply voltage: 220 - 240V AC, 50Hz Dimensions: 120 () x 25 (D) mm Color: white Protection class: IP20Installation instructions:Note:

Property	Value
Depth:	25 mm
Design:	Motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9003
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	5 to 1000 lx
Protection class (IP):	IP20
Max. Switching capacity:	1000 W
Voltage type:	AC
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	30 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 40 °C
Response brightness adjustable:	yes
Response sensitivity adjustable:	yes
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	Thermoplastic
Detection field diameter on floor:	7 m
Number of switching zones:	35
Detection angle horizontal:	360 °
Halogen-free:	yes
Constant light control:	yes
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	screw terminal
Antibacterial treatment:	no
Diameter:	122 mm

Characteristics

ColorWhite

Bridging switchNo

With signal unitNo

Number of switching zones35

Response brightness5 to 1000 lx

Forced shutdownNo

Scanning angle360 °

Forced switching onNo

HABMcGuard BM DAV 360 degrees 7m white

Manufacturer

HAN94504

GTIN4011459945046

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Diameter122 mm

Detection field diameter on floor7m

Detection angle horizontal360°

Color

Remote controllableNo

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Constant light controlYes

Max. duty cycle20 min

Max. switching capacity1000W

Min. duty cycle30s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9003

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-20 to 40 °C

Depth25 mm

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
