Grothe McGuard DE PB 360 degrees 8m at H = 2.5m motion detector, 94506

Grothe McGuard DE PB 360 degrees 8m at H = 2.5m motion detector, 94506

In stock

SKU: 492734

Price on request

€40.35

€0

Overview

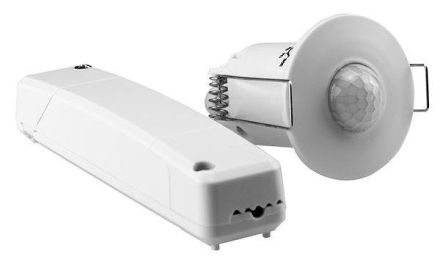

The McGuard family now consists of 7 different model series, each specialised in its own field and functionally coordinated with each other. The devices combine the reliability you expect from Grothe in everyday use with a high level of ease of installation and ease of use.Product features:Passive infrared motion detector with connection boxTechnical data:Monitoring area 360° with a diameter of 8m at a mounting height of 2.5m Switch-on time from 30 seconds to 30 minutesSwitching capacity: Incandescent lamps: max. 2000W Halogen lamps 230VAC max. 1000W Fluorescent lamps: max. 500VA LED lamps: max. 500W Energy saving lamps Max. 500W Supply voltage: 220 - 240V AC, 50Hz Dimensions: Outside diameter: 50mm Bore: 38mm Installation depth: 55mm Power box: 130 x 25 x 28mm Color: white Protection class: IP20Installation instructions:Note:

Property	Value
Depth:	68 mm
Design:	Motion detector
Color:	white
Rated voltage:	230 V
RAL number (similar):	9003
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 1000 lx
Protection class (IP):	IP20
Max. switching capacity:	2000 W
Voltage type:	AC
Max. range to one side:	4 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	30 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 40 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. Frontal range:	8 m
Sensor type:	passive infrared
Optimal mounting height:	2.4 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	8 m
Number of switching zones:	35
Horizontal detection angle:	360 °
Halogen-free:	yes
Constant light control:	yes
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bridging switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Suitable for ceiling mounting:	yes
Connection type:	screw terminal
Antibacterial treatment:	no
Diameter:	52 mm
Installation depth:	35 mm

Characteristics

Bridging switchNo

With signal unitYes

Number of switching zones35

Response brightness5 to 1000 lx

Forced shutdownNo

Scanning angle360 °

HABMcGuard DE PB 360 degrees 8m at H = 2.5m

Manufacturer

HAN94506

GTIN4011459945060

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Diameter52 mm

Installation depth35 mm

Detection field diameter on floor8m

Detection angle horizontal360°

Color

Remote controllableNo

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Constant light controlYes

Max. duty cycle20 min

Max. range frontal8m

Max. range to one side4m

Max. switching capacity2000W

Min. duty cycle30s

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2.4m

RAL number (similar)9003

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-20 to 40 °C

Depth68 mm

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
