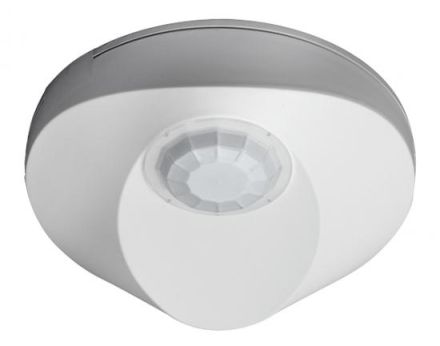

Grothe McGuard PM-APws presence white motion detector, 94500

Grothe McGuard PM-APws presence white motion detector, 94500

In stock

SKU: 493073

Price on request

€74.45

€0

Overview

The McGuard family now consists of 7 different model series, each one specializing in its own field and functionally coordinated with one another. The devices combine the reliability you expect from Grothe in everyday use with a high level of ease of installation and ease of use.Product features:McGuard PM-ApwsPassive infrared motion detectorResponse sensitivity. continuously adjustable 2 outputs 1x potential-bound, 1x potential-freeTechnical data:Monitoring range 360° at 6m Switch-on time from 5 sec. to 12 minSwitching capacity: Incandescent lamps: max. 2300W Fluorescent lamps: max. 400W HV halogen lamps: max. 1000W Supply voltage: 230V AC, 50Hz Effective power: 1.6W Dimensions: 113 () x X39 (D) mm Color: white Protection class: IP40Installation instructions:Note:

Property	Value
Height:	39 mm
Design:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	5 lx
Protection class (IP):	IP40
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	3 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	5 s
Max. Duty cycle:	12 min
Creep under protection/rear field monitoring:	no
Temperature:	-10 to 45 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. range, frontal:	6 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	2.4 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	6 m
Detection angle horizontal:	360 °
Halogen-free:	yes
Constant light control:	yes
HVAC control:	yes
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Screw terminal
Antibacterial treatment:	no
Diameter:	113 mm

Characteristics

ColorWhite

Bridging switchNo

With signal unitNo

Response brightness5 lux

Forced shutdownNo

Max. inrush current10 A

Scanning angle360 °

Forced switching onNo

HABMcGuard PM-APws presence white

Manufacturer

HAN94500

GTIN4011459945008

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Diameter113 mm

Detection field diameter on floor6m

Detection angle horizontal360°

Color

Remote controllableNo

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlYes

Halogen freeYes

Height39 mm

Constant light controlYes

Max. duty cycle12 min

Max. range frontal6m

Max. range to one side3m

Max. switching capacity2300W

Min. duty cycle5s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2.4m

RAL number (similar)9010

IP protection)IP40

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-10 to 45 °C

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
