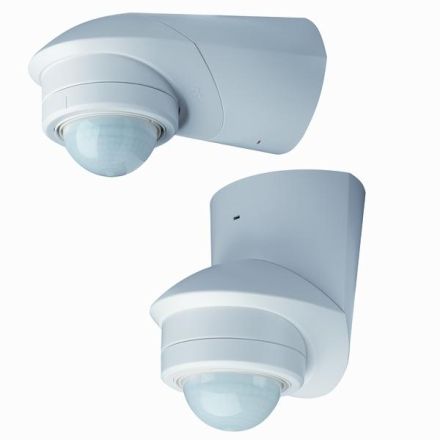

Grothe McGuard professional BM240ws white motion detector, 94531

Grothe McGuard professional BM240ws white motion detector, 94531

In stock

SKU: 492825

Price on request

€37.02

€0

Overview

The McGuard family now consists of 7 different model series, each one specializing in its own field and functionally coordinated with one another. The devices combine the reliability you expect from Grothe in everyday use with a high level of ease of installation and ease of use.Product features:McGuard professional BM240wsPassive infrared motion detectorCeiling, wall and corner installation including universal bracketResponse sensitivity. continuously adjustable creep protection radius 1mTechnical data:Monitoring range 240° at 12m Switch-on time from 3 seconds to 12 minutesSwitching capacity: Incandescent lamps max. 1000W Energy saving lamps max. 500VA Fluorescent lamps max. 250W LED lamps max. 150W Supply voltage: 230V AC, 50Hz Effective power: 0.9W Protection class: IP55 (suitable for outdoor use) Color: whiteInstallation instructions:Note:

Property	Value
Depth:	120 mm
Width:	84 mm
Height:	78 mm
Design:	Motion detector
Color:	white
Rated voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	2 lx
Protection class (IP):	IP55
Max. switching capacity:	1000 W
Voltage type:	AC
Max. range to one side:	6 m
Scan angle:	240 °
Suitable for wall mounting:	yes
Min. duty cycle:	3 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	no
Temperature:	-10 to 45 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. range, frontal:	12 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	12 m
Horizontal detection angle:	240 °
Frequency:	50 Hz
Sensor swivel range, horizontal:	160 °
Halogen-free:	yes
Constant light control:	yes
HVAC control:	yes
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	no
Connection type:	Screw terminal
Antibacterial treatment:	no

Characteristics

ColorWhite

Bridging switchNo

With signal unitNo

Response brightness2 lx

Forced shutdownNo

Max. inrush current10 A

Scanning angle240 °

HABMcGuard professional BM240ws white

Manufacturer

HAN94531

GTIN4011459945312

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width84 mm

Detection field diameter on floor12m

Detection angle horizontal240°

Color

Remote controllableNo

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlYes

Halogen freeYes

Height78 mm

Constant light controlYes

Max. duty cycle20 min

Max. range frontal12m

Max. range to one side6m

Max. switching capacity1000W

Min. duty cycle3s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

RAL number (similar)9010

IP protection)IP55

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-10 to 45 °C

Depth120 mm

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
