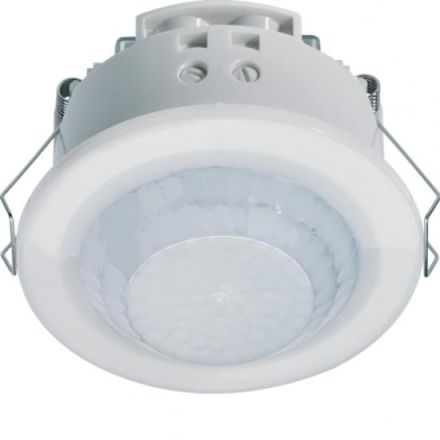

Hager EE805A 360° flush-mounted motion detector

360° flush-mounted motion detector, normally open contact with zero-crossing circuit. 360° motion detector with increased detection sensitivity in the central presence detection area with integrated twilight switch for cavity wall or flush-mounted installation. For indoor use, for example: corridors, entrance halls, etc. The detector reacts to the infrared radiation (body heat) of moving bodies within a detection diameter of 6 m at a recommended installation height of 2.5 m. The signal is sent using a built-in pyroelectric sensor. The brightness value and the duty cycle are set using a potentiometer on the housing. Ready for use immediately thanks to the factory default setting. Test operation to check function and detection range.
