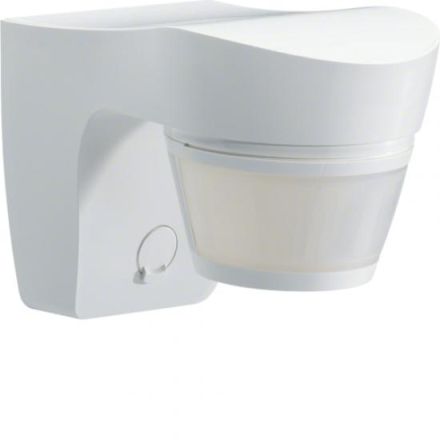

Outdoor motion detector 140° IP55, surface-mounted, white. Outdoor motion detector for controlling lighting in commercial buildings and residential houses by detecting moving people. Detection range of 140° and a range of max. 16m with a recommended installation height of 2.5m. Horizontal lens adjustment of +/- 80° and vertical lens adjustment of 0-30° possible. Detection using Fresnel lenses. The monitoring area can be limited using the included covers. The time delay and brightness value are set directly on the device; a pulse can also be generated. Can be installed on the ceiling and corners using the optional EE825 or EE827 mounting adapter.
| Property | Value |
| Design: | Motion detector |
| RAL number (similar): | 9010 |
| Material: | Plastic |
| Mounting type: | Surface-mounted |
| Protection class (IP): | IP55 |
| Max. Range to one side: | 8 m |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 5 s |
| Max. duty cycle: | 15 min |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. Frontal range: | 16 m |
| Optimal installation height: | 4 m |
| Material quality: | Thermoplastic |
| Horizontal detection angle: | 140 ° |
| Frequency: | 50 to 60 Hz |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | yes |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | no |
| Teach function for response brightness: | yes |
| With remote control: | no |
| With DALI interface: | no |
| Extension input: | yes |
| Antibacterial treatment: | no |
