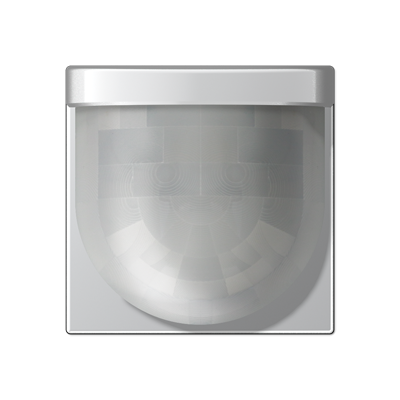

LB-Management motion detector standard 2.20 m, IP44, Series A, aluminum for inserts 'Light' Item no.: 1701 SE, 1701 PSE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE With sealing set Item no.: AS A 50 DS and program-specific 'IP 44 frame', the protection level IP 44 is guaranteed. IP 44 installation only permitted indoors Intended use Automatic switching of lighting, depending on heat movement and ambient brightness Operation with system insert for switching or dimming or 3-wire extension Wall mounting on system insert Product features Extension of the Detection area in combination with 3-wire extension unit Operation with 2- or 3-wire extension unit, rotary extension unit or button Adjustable brightness threshold Adjustable sensitivity Fixed run-on time Switch on with last brightness or fixed switch-on brightness, with dimmer insert Switch-on brightness can be permanently saved via extension unit, with dimmer insert Light can be dimmed via extension unit, with dimmer insert Ambient temperature: 20 ... +45 °C Storage/transport temperature: 25 ... +70 °C Brightness setting: approx. 5 ... 1,000 lx (and daytime operation) Sensitivity: 25, 50, 75, 100 % Run-on time: approx. 2 min Installation height: 1.10 / 2.20 m Detection angle: 180° Detection range (mounted at 2.20 m) Sensitivity 25%: max. 7 m Sensitivity 50%: max. 11 m Sensitivity 75%: max. 13 m Sensitivity 100%: max. 15 m Detection range (mounted at 1.10 m) Sensitivity 25%: max. 7 m Sensitivity 50%: max. 8 m Sensitivity 75%: max. 9 m Sensitivity 100%: max. 10 m Material: painted thermoplastic Dimensions (W x H): 55 x 55 mm
