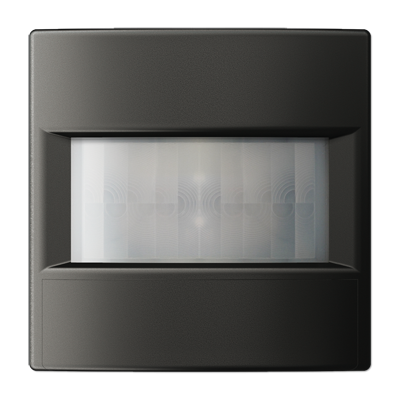

LB-Management motion detector standard 1.10 m, IP44, LS series, anthracite for 'light' inserts, item nos.: 1701 SE, 1701 PSE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE IP-44 installation only permitted indoors Intended use Automatic switching of lighting, depending on heat movement and ambient brightness Operation with system insert for switching or dimming or 3-wire extension Wall mounting on system insert Product features Extension of the detection range in combination with 3-wire extension Operation with 2- or 3-wire extension, rotary extension or button Brightness threshold adjustable Sensitivity adjustable Fixed run-on time Switch on with last brightness or fixed switch-on brightness, with dimmer insert Switch-on brightness can be permanently saved via extension, with dimmer insert Light can be dimmed via extension, with dimmer insert Cover for limiting the detection area Ambient temperature: 20 ... +45 °C Storage/transport temperature: 25 ... +70 °C Brightness setting: approx. 5 ... 1,000 lx (and daytime operation) Sensitivity: 25, 50, 75, 100% Run-on time: approx. 2 min Installation height: 1.10 m Detection angle: 180° Detection range Sensitivity 25%: max. 8 m Sensitivity 50%: max. 13 m Sensitivity 75%: max. 26 m Sensitivity 100%: max. 32 m Dimensions (W x H): 70 x 70 mm
