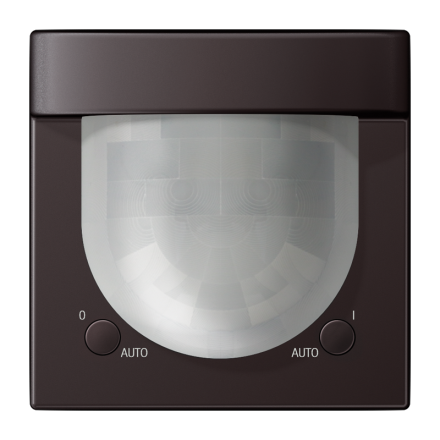

JUNG HOME motion detector 2.20 m, IP44, LS series, dark Intended use Automatic switching of lighting, depending on heat movement and ambient brightness Wireless linking with devices of the JUNG HOME system Operation with system insert for switching or dimming or 3-wire extension Wall mounting on system insert Product features Commissioning and operation via JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth® 2 buttons for permanent ON/OFF or automatic operation Extension of the detection area by combining several JUNG HOME motion detectors or via extension input Multi-colored status display with optional night mode Locking of local operation Free linking of the motion sensor with actuator in use or wirelessly with other JUNG HOME devices or to call up a scene Up to 16 time programs control the functions of the respective insert (ON/OFF switching or dimming) Staircase light function (lighting cannot be switched off manually) with switch-off warning Follow-up time Activate/deactivate automatic operation via JUNG HOME app Automatic summer/winter time changeover Automatic date and time update when connected to smartphone Maximum brightness and minimum brightness adjustable, with dimming insert Switch on with last brightness or fixed switch-on brightness, with dimming insert Integration of the local actuator in groups, central functions and scenes Evaluation of the extension inputs (if available) to control the insert Bluetooth® SIG Mesh for fully encrypted wireless communication and repeater function Can be updated via JUNG HOME app Available in the future via update: (Information on updates and dates can be found at www.jung.de/JUNGHOME) Time programs with sunrise or sunset (Astro function) Time programs with random time Dynamic run-on time Locking and forced function: permanent ON/OFF or ON/OFF for a fixed time Night light function with period for brightness reduction, with dimming insert Hotel function (orientation light instead of OFF), with dimming insert Warm dimming (changing the color temperature with simultaneous increase in brightness), with DALI insert On/off delay Ambient temperature: 5 ... +45 °C Transport temperature: 25 ... +70 °C Storage temperature: 5 ... +45 °C Relative humidity: 20 ... 70 % (no condensation) Degree of protection: IP 20 Accuracy per month: ± 13 s Power reserve: at least 4 h Detection angle: 180° Installation height: 1.10 / 2.20 m Sensitivity: 0, 25, 50, 75, 100 % Brightness setting: approx. 5 ... 1,000 lx (and daytime operation) Follow-up time: approx. 10 s ... 60 min Radio frequency: 2402.0 ... 2480.0 MHz Transmission power: max. 10 mW (class 1.5) Transmission range in buildings: approx. 30 m Material: painted thermoplastic Dimensions (W x H): 55 x 55 mm
