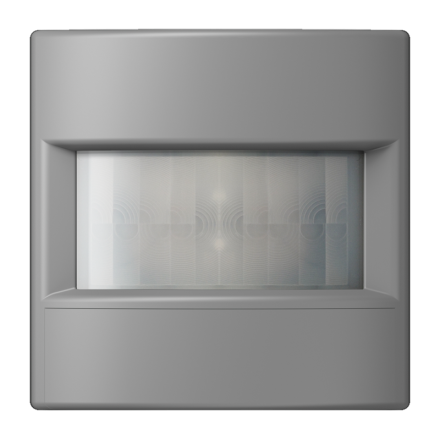

JUNG HOME motion detector 1.10 m, LS series, gris 31 for 'light' inserts, item nos.: 1701 SE, 1701 PSE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1712 DE, 1713 DSTE, 1723 NE
Intended use
Automatic switching of lighting, depending on heat movement and ambient brightness
Wireless connection with devices of the JUNG HOME system
Operation with system insert for switching or dimming or 3-wire extension
Wall mounting on system insert
Product features
Commissioning and operation via JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
Switch for permanent ON/OFF or automatic operation
Extension of the detection range by combining several JUNG HOME motion detector or via extension input
Cover to restrict the detection area
Multi-coloured status display with optional night mode
Locking of local operation
Free linking of the motion sensor with actuator in use or wirelessly with other JUNG HOME devices or to call up a scene
Up to 16 time programs control the functions of the respective use (ON/OFF switching or dimming)
Staircase light function (lighting cannot be switched off manually) with switch-off warning
Follow-up time
Activate/deactivate automatic operation via JUNG HOME app
Automatic summer/winter time change
Automatic date and time update when connected to smartphone
Maximum brightness and minimum brightness adjustable, with dimming insert
Switch on with last brightness or fixed switch-on brightness, with dimming insert
Integration of the local actuator in groups, central functions and scenes
Evaluation of the Extension inputs (if available) for controlling the insert
Bluetooth® SIG Mesh for fully encrypted wireless communication and repeater function
Can be updated via JUNG HOME app
Available in the future via update:
(Information on updates and dates can be found at www.jung.de/JUNGHOME)
Time programs with sunrise or sunset (astro function)
Time programs with random time
Dynamic follow-up time
Locking and forced function: permanent ON/OFF or ON/OFF for a fixed time
Night light function with period for reducing brightness, with dimming insert
Hotel function (orientation light instead of OFF), with dimming insert
Warm dimming (changing the color temperature with simultaneous increase in brightness), with DALI insert
On/off delay
Ambient temperature: 5 ... +45 °C
Transport temperature: 25 ... +70 °C
Storage temperature: 5 ... +45 °C
Relative humidity: 20 ... 70 % (no condensation)
Protection level: IP 20
Accuracy per month: ± 13 s
Power reserve: at least 4 h
Detection angle: 180°
Installation height: 1.10 m
Sensitivity: 0, 25, 50, 75, 100 %
Brightness setting: approx. 5 ... 1,000 lx (and daytime operation)
Follow-up time: approx. 10 s ... 60 min
Radio frequency: 2402.0 ... 2480.0 MHz
Transmission power: max. 10 mW (class 1.5)
Transmission range
in Buildings: approx. 30 m
Dimensions (W x H): 55 x 55 mm
| Feature | Value |
| Installation height: | 1.1 m |
| Installation type: | Flush-mounted |
| Design: | Motion detector |
| Constant light control: | no |
| Adjustable response sensitivity: | yes |
| Horizontal detection angle: | 180.0 ° |
| Creep under protection/rear field monitoring: | no |
| Min. duty cycle: | 10 s |
| Max. duty cycle: | 60 min |
| Max. range to one side: | 15 m |
| Max. Frontal range: | 30 m |
| HVAC control: | yes |
| Response brightness adjustable: | yes |
| Networkable: | yes |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | yes |
| Suitable for protection class (IP): | IP20 |
| Suitable for wireless transmission: | yes |
| Color: | other |
| Staircase monitoring: | yes |
| Halogen-free: | yes |
| Animal corridor: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Self-learning switch-off delay: | yes |
| Operating mode switch: | yes |
