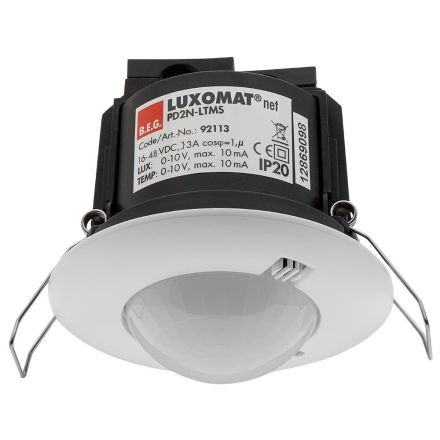

BEG 92113 PD2N-LTMS-DE Luxomat presence detector

In stock

SKU: 389454

Price on request

€111.40

€0

Overview

Multi-sensor for detecting presence, temperature and brightness values Ceiling-mounted version For integration into a proprietary bus system Output of the current light and temperature value as analog voltage Output of the motion detection via switching contact Fine adjustment of the output value for the light measurement and temperature via potentiometer on the device

Property	Value
Height:	83.0 mm
Version:	Presence detector
Color:	white
Nominal voltage:	48 V
RAL number (similar):	9010.0
Material:	Plastic
Mounting type:	other
Protection class (IP):	IP20
Voltage type:	DC
Max. Range to one side:	5 m
Suitable for wall mounting:	no
Min. duty cycle:	15 s
Max. duty cycle:	30 min
Creep-by protection/rear field monitoring:	yes
Adjustable response brightness:	no
Max. presence range:	12.0 m²
Max. Frontal range:	6 m
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Material quality:	other
Detection field diameter on floor:	10 m
Number of switching zones:	78.0
Halogen-free:	yes
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote control:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK05
Diameter:	80.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones78.0

Max. presence range12.0 m²

HABPD2N-LTMS-DE Luxomat

Manufacturer

HAN92113

GTIN4007529921133

Dimming function with dimming insertNo

Alarm functionNo

Response brightness adjustableNo

Antibacterial treatmentNo

Version

Diameter80.0 mm

Detection field diameter on floor10m

Color

Remote controllableNo

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height83.0 mm

Max. duty cycle30 min

Max. range frontal6m

Max. range to one side5 m

Min. duty cycle15s

With DALI interfaceNo

With remoteNo

Mounting typeOther

Nominal voltage

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK05

IP protection)IP20

Sensor type

Voltage typeDC

Teach function for response brightnessNo

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
