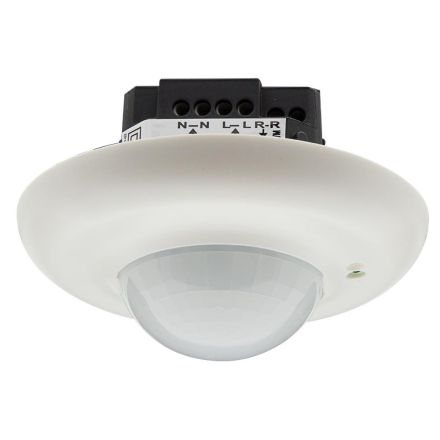

BEG 92156 PD2-Slave, flush-mounted presence detector

BEG 92156 PD2-Slave, flush-mounted presence detector

In stock

SKU: 388897

Price on request

€83.63

€0

Overview

Slave device with circular detection area Flush-mounted version To extend the detection area of a master device Switching pulse to the master device when movement is detected, regardless of the ambient brightness Compatible with all master devices, except: PD4-M-2C-DS-DE, 11-48V devices, PD9-M-SDB, PD4-M-DAA4G, Indoor 140-L, PD2N-M-1C-LED

Property	Value
Height:	65.0 mm
Version:	motion detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	Plastic
Mounting type:	Flush-mounted
Protection class (IP):	IP20
Voltage type:	AC
Max. Range to one side:	5 m
Suitable for wall mounting:	no
Creep-by protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	no
Max. presence range:	12.0 m²
Max. Frontal range:	6 m
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	10 m
Control current:	1 mA
Number of switching zones:	78.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for Response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK05
Diameter:	98.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones78.0

Max. presence range12.0 m²

HABPD2-Slave, flush-mounted

Manufacturer

HAN92156

GTIN4007529921560

Dimming function with dimming insertNo

Alarm functionNo

Response brightness adjustableNo

Antibacterial treatmentNo

Version

Surface finishFrosted

Diameter98.0 mm

Detection field diameter on floor10m

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height65.0 mm

Max. range frontal6m

Max. range to one side5 m

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Nominal voltage

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK05

IP protection)IP20

Sensor type

Voltage typeAC

Teach function for response brightnessNo

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
