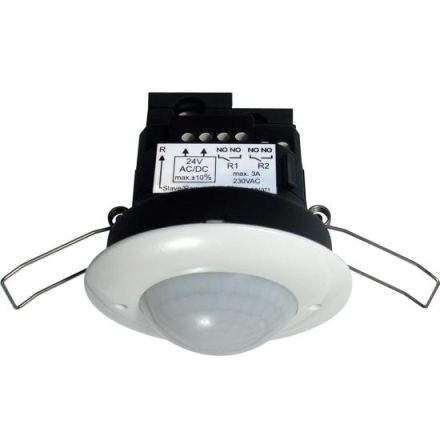

BEG 92164 PD2-M, 24Volt, 3A, ceiling-mounted presence detector

BEG 92164 PD2-M, 24Volt, 3A, ceiling-mounted presence detector

In stock

SKU: 388918

Price on request

€120.55

€0

Overview

Presence detector with an operating voltage of 11-48 V Ceiling-mounted version Two potential-free channels For channel 1, output of a brightness-dependent resistance value for analogue connection is also possible Can be used as both a master device and a slave device Manual switching via button possible Additional functions can be set via optional remote control Factory setting 10 min and 500 lux (15 min HKL)

Property	Value
Height:	85.0 mm
Version:	Presence detector
Color:	white
Nominal voltage:	48 V
RAL number (similar):	9010.0
Material:	Plastic
Mounting type:	other
Response brightness:	20 to 2000 lx
Protection class (IP):	IP20
Voltage type:	AC/DC
Max. range to one side:	5 m
Suitable for wall mounting:	no
Min. duty cycle:	15 s
Max. duty cycle:	30 min
Creep-by protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. Presence area:	12.0 m²
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	10 m
Control current:	4 mA
Number of switching zones:	78.0
Halogen-free:	yes
HVAC control:	yes
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	yes
Teach function for Response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	yes
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK05
Diameter:	80.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones78.0

Response brightness20 to 2000 lx

Forced shutdownYes

Max. presence range12.0 m²

HABPD2-M, 24Volt, 3A, ceiling installation

Manufacturer

HAN92164

GTIN4007529921645

Dimming function with dimming insertNo

Alarm functionYes

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

Version

Surface finishFrosted

Diameter80.0 mm

Detection field diameter on floor10m

Color

Remote controllableYes

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlYes

Halogen freeYes

Height85.0 mm

Max. duty cycle30 min

Max. range to one side5 m

Min. duty cycle15s

With DALI interfaceNo

With remoteNo

Mounting typeOther

Extension inputYes

Nominal voltage

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK05

IP protection)IP20

Sensor type

Voltage typeAC/DC

Teach function for response brightnessYes

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
