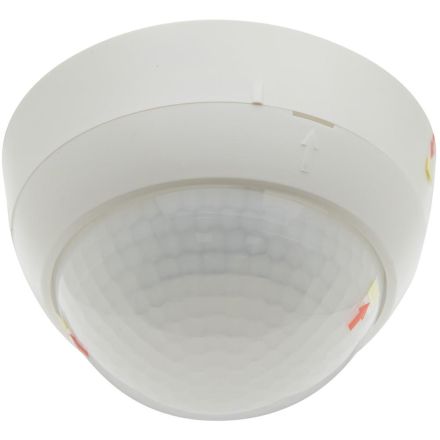

BEG 92245 PD4-Master, for high halls, surface-mounted presence detector

In stock
SKU: 388915
€168.77
Into a basketIn the basketGo

Overview

Presence detector especially for high-bay warehouses, A potential-free switching contact, Designed as a master device, Extension of the detection range with slave devices possible, Easy operation using the required remote control, Manual switching via button possible, Markings are provided for the alignment of the detector, When used in high-bay warehouses, care must be taken to ensure that detectors are installed in the head areas of the shelf aisles, which only detect movement in the desired shelf area using blinds or assembly arrangement., Factory setting 3 min and 1000 lux

PropertyValue
Height:63.0 mm
Version:Presence detector
Color:white
Nominal voltage:240 V
RAL number (similar):9010.0
Material:Plastic
Mounting type:Surface-mounted
Response brightness:20 to 2000 lx
Protection class (IP):IP20
Max. Switching capacity:2300 W
Voltage type:AC
Max. range to one side:22 m
Suitable for wall mounting:no
Min. duty cycle:15 s
Max. duty cycle:30 min
Creep-by protection/rear field monitoring:yes
Temperature:-25 to 50 °C
Adjustable response brightness:yes
Adjustable response sensitivity:yes
Max. Frontal range:30 m
Max. Inrush current:165 A
Sensor type:passive infrared
Optimal installation height:14 m
Surface finish:matt
Surface:untreated
Material quality:other
Detection field diameter on floor:30 m
Control current:2 mA
Number of switching zones:700.0
Frequency:50 to 60 Hz
Halogen-free:yes
HVAC control:no
Forced shutdown:yes
Animal corridor:no
Networkable:no
Staircase monitoring:yes
Bypass switch:no
Suitable for wireless transmission:no
Remote controllable:yes
With signal unit:no
Alarm function:no
Teach function for response brightness:yes
Dimming function with dimming insert:no
Transparent:no
With remote control:no
Suitable for C load:no
With DALI interface:no
Extension input:yes
Suitable for ceiling mounting:yes
Antibacterial treatment:no
Impact resistance:IK04
Diameter:98.0 mm

Characteristics

Bridging switchNo
With signal unitNo
Number of switching zones700.0
Response brightness20 to 2000 lx
Forced shutdownYes
Max. inrush current165 A
HABPD4-Master, for high halls, surface-mounted
ManufacturerB.E.G.
HAN92245
GTIN4007529922451
Dimming function with dimming insertNo
Alarm functionNo
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentNo
Surface finishFrosted
Diameter98.0 mm
Detection field diameter on floor30m
ColorWhite
Remote controllableYes
Frequency50 to 60 Hz
Suitable for C-loadNo
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Height63.0 mm
Max. duty cycle30 min
Max. range frontal30m
Max. range to one side22m
Max. switching capacity2300W
Min. duty cycle15s
With DALI interfaceNo
With remoteNo
Mounting typeSurface-mounted
Extension inputYes
Nominal voltage240V
SurfaceUntreated
Optimal mounting height14m
RAL number (similar)9010.0
Impact resistanceIK04
IP protection)IP20
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessYes
Temperature-25 to 50 °C
Animal corridorNo
TransparentNo
Staircase monitoringYes
Creep protection/rear field monitoringYes
NetworkableNo
MaterialPlastic
Material qualityOther
