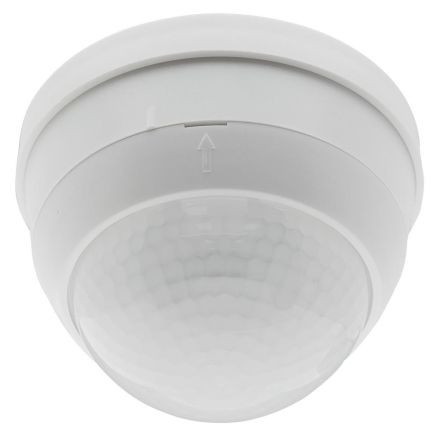

BEG 92265 PD4-Slave for high halls surface-mounted white presence detector

In stock
SKU: 388892
€96.78
Into a basketIn the basketGo

Overview

Slave device specially designed for great heights, To extend the detection range of a master device, Switching pulse to the master device when movement is detected regardless of the ambient brightness, Compatible with 230 V master devices, for exceptions please see the respective master device., Markings are provided for the alignment of the detector, When used in high-bay warehouses, care must be taken to ensure that detectors are installed in the head areas of the shelf aisles, which only detect movement in the desired shelf area using blinds or mounting arrangement.

PropertyValue
Height:76.0 mm
Version:motion detector
Color:white
Nominal voltage:240 V
RAL number (similar):9010.0
Material:Plastic
Mounting type:Surface-mounted
Protection class (IP):IP54
Voltage type:AC
Max. Range to one side:15 m
Suitable for wall mounting:no
Creep-under protection/rear field monitoring:yes
Temperature:-25 to 50 °C
Adjustable response brightness:no
Max. Frontal range:30 m
Sensor type:passive infrared
Optimal installation height:14 m
Surface finish:matt
Surface:untreated
Material quality:other
Detection field diameter on floor:30 m
Control current:1 mA
Number of switching zones:700.0
Frequency:50 to 60 Hz
Halogen-free:yes
HVAC control:no
Animal corridor:no
Networkable:no
Staircase monitoring:yes
Bypass switch:no
Suitable for wireless transmission:no
Remote controllable:no
With signal unit:no
Alarm function:no
Teach function for Response brightness:no
Dimming function with dimming insert:no
Transparent:no
With remote control:no
Suitable for C load:no
With DALI interface:no
Suitable for ceiling mounting:yes
Antibacterial treatment:no
Impact resistance:IK04
Diameter:101.0 mm

Characteristics

Bridging switchNo
With signal unitNo
Number of switching zones700.0
HABPD4-Slave for high halls surface-mounted white
ManufacturerB.E.G.
HAN92265
GTIN4007529922659
Dimming function with dimming insertNo
Alarm functionNo
Response brightness adjustableNo
Antibacterial treatmentNo
Surface finishFrosted
Diameter101.0 mm
Detection field diameter on floor30m
ColorWhite
Remote controllableNo
Frequency50 to 60 Hz
Suitable for C-loadNo
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Height76.0 mm
Max. range frontal30m
Max. range to one side15m
With DALI interfaceNo
With remoteNo
Mounting typeSurface-mounted
Nominal voltage240V
SurfaceUntreated
Optimal mounting height14m
RAL number (similar)9010.0
Impact resistanceIK04
IP protection)IP54
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessNo
Temperature-25 to 50 °C
Animal corridorNo
TransparentNo
Staircase monitoringYes
Creep protection/rear field monitoringYes
NetworkableNo
MaterialPlastic
Material qualityOther
