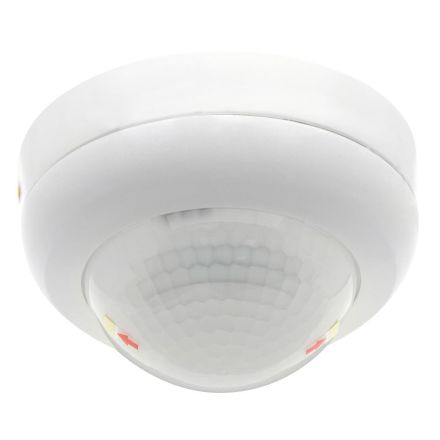

BEG 92270 PD4-1Kanal-K for long corridors surface-mounted presence detector

BEG 92270 PD4-1Kanal-K for long corridors surface-mounted presence detector

In stock

SKU: 389556

Price on request

€117.82

€0

Overview

Remote-controlled ceiling motion detector especially for corridors, One channel for switching light, Switching at zero crossing, Special optical system for detecting even the smallest movements, Additional functions can be set via optional remote control, Uninterrupted parallel connection detection of several detectors, Manual switching possible via button, Factory setting 10 min and 500 lux, Markings are provided for aligning the detector

Property	Value
Height:	65.0 mm
Design:	motion detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	20 to 2000 lx
Protection class (IP):	IP44
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	20 m
Suitable for wall mounting:	no
Min. duty cycle:	15 s
Max. duty cycle:	30 min
Creep-by protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. Frontal range:	20 m
Max. Inrush current:	165 A
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	24 m
Control current:	2 mA
Number of switching zones:	1200.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Dimming function with Dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK04
Diameter:	109.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones1200.0

Response brightness20 to 2000 lx

Max. inrush current165 A

HABPD4-1Kanal-K for long corridors surface-mounted

Manufacturer

HAN92270

GTIN4007529922703

Dimming function with dimming insertNo

Alarm functionNo

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

Version

Surface finishFrosted

Diameter109.0 mm

Detection field diameter on floor24m

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height65.0 mm

Max. duty cycle30 min

Max. range frontal20m

Max. range to one side20m

Max. switching capacity2300W

Min. duty cycle15s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Nominal voltage

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK04

IP protection)IP44

Sensor type

Voltage typeAC

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
