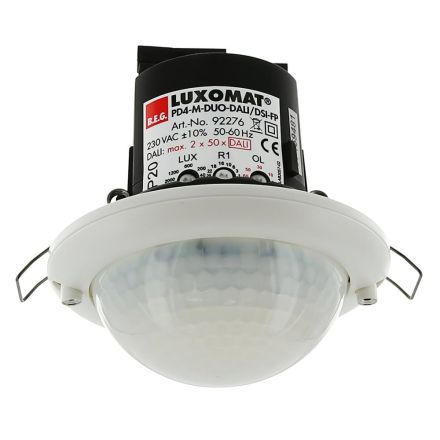

BEG 92276 PD4-M-DUO-DALI/DSI-DE Luxomat presence detector

BEG 92276 PD4-M-DUO-DALI/DSI-DE Luxomat presence detector

In stock

SKU: 389399

Price on request

€195.57

€0

Overview

Presence detector for two separate light groups for daylight-dependent lighting control, One common detection area, Two independent, movable light sensors, 2 DALI/DSI interfaces for controlling digital, dimmable electronic ballasts as a group, Switching between DALI and DSI program possible using DIP switch and remote control, Designed as a master device, Extension of the detection area with slave devices possible, Additional functions can be set using an optional remote control, Manual switching and dimming possible using a button, Orientation light function, Semi-automatic, fully automatic or twilight switch operation

Property	Value
Height:	103 mm
Version:	Presence detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	other
Response brightness:	50 to 2000 lx
Protection class (IP):	IP20
Voltage type:	AC
Max. range to one side:	12 m
Suitable for wall mounting:	no
Min. duty cycle:	60 s
Max. duty cycle:	30 min
Creep-by protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. Presence area:	32 m²
Max. Frontal range:	8 m
Optimal installation height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	24 m
Control current:	4 mA
Horizontal detection angle:	0 to 360 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	yes
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	yes
Extension input:	yes
Forced switching on:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Diameter:	97 mm

Characteristics

Bridging switchNo

With signal unitNo

Response brightness50 to 2000 lx

Forced shutdownNo

Forced switching onNo

Max. presence range32 m²

HABPD4-M-DUO-DALI/DSI-DE Luxomat

Manufacturer

HAN92276

GTIN4007529922765

Dimming function with dimming insertNo

Alarm functionNo

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

Version

Surface finishFrosted

Diameter97 mm

Detection field diameter on floor24m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Height103 mm

Constant light controlYes

Max. duty cycle30 min

Max. range frontal8m

Max. range to one side12m

Min. duty cycle60s

With DALI interfaceYes

With remoteNo

Mounting typeOther

Extension inputYes

Nominal voltage

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010

IP protection)IP20

Voltage typeAC

Teach function for response brightnessYes

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
