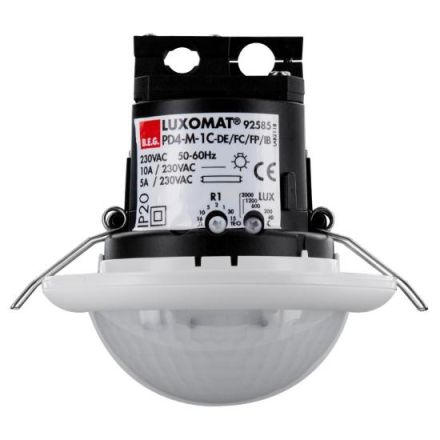

BEG 92585 PD4-M-1C-DE white Luxomat presence detector

BEG 92585 PD4-M-1C-DE white Luxomat presence detector

In stock

SKU: 389456

Price on request

€138.68

€0

Overview

Presence detector with large detection range, one potential-free contact, designed as a master device, extension of the detection range with slave devices possible, manual switching via button possible, additional functions adjustable via optional remote control, factory setting 10 min and 500 lux

Property	Value
Height:	103.0 mm
Version:	Presence detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	Plastic
Mounting type:	other
Response brightness:	20 to 2000 lx
Protection class (IP):	IP20
Max. switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	12 m
Suitable for wall mounting:	no
Min. duty cycle:	15 s
Max. Duty cycle:	30 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence range:	32.0 m²
Max. frontal range:	4 m
Max. Inrush current:	165 A
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	24 m
Control current:	2 mA
Number of switching zones:	450.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote control:	yes
With Signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	yes
Suitable for ceiling mounting:	yes
Antibacterial Treatment:	no
Impact resistance:	IK04
Diameter:	97.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones450.0

Response brightness20 to 2000 lx

Forced shutdownNo

Max. inrush current165 A

Max. presence range32.0 m²

HABPD4-M-1C-DE white Luxomat

Manufacturer

HAN92585

GTIN4007529925858

Dimming function with dimming insertNo

Alarm functionNo

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

Version

Surface finishFrosted

Diameter97.0 mm

Detection field diameter on floor24m

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height103.0 mm

Constant light controlNo

Max. duty cycle30 min

Max. range frontal4m

Max. range to one side12m

Max. switching capacity2300W

Min. duty cycle15s

With DALI interfaceNo

With remoteNo

Mounting typeOther

Extension inputYes

Nominal voltage

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK04

IP protection)IP20

Sensor type

Voltage typeAC

Teach function for response brightnessYes

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther

BEG 92585 PD4-M-1C-DE white Luxomat presence detector
