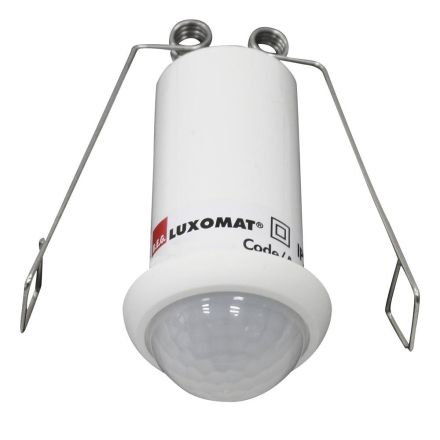

BEG 92700 PICO-S-DE Luxomat presence detector

In stock

SKU: 389477

Price on request

€105.36

€0

Overview

LUXOMAT® PICO mini presence detector without additional power unit, suitable for damp rooms, M: one channel for switching light, extension of the detection area with slave devices (S) possible Voltage: 110 - 240 V AC 50 / 60 Hz, range: max. 10 m across, recommended installation height: 2.5 m, switching capacity: 2300 W, run-on time: 5 min - 30 min, pulse, switch-on threshold: 10 - 2000 lux, optionally remote controllable with IR-PD-1C or IR adapter for smartphones.

Property	Value
Height:	60.0 mm
Version:	motion detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	plastic
Mounting type:	other
Protection class (IP):	IP65
Voltage type:	AC
Max. Range to one side:	5 m
Suitable for wall mounting:	no
Creep-under protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	no
Max. Presence area:	12.0 m²
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	10 m
Control current:	1.3 mA
Number of switching zones:	78.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for Response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK04
Diameter:	33.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones78.0

Max. presence range12.0 m²

HABPICO-S-DE Luxomat

Manufacturer

HAN92700

GTIN4007529927005

Dimming function with dimming insertNo

Alarm functionNo

Response brightness adjustableNo

Antibacterial treatmentNo

Version

Surface finishFrosted

Diameter33.0 mm

Detection field diameter on floor10m

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height60.0 mm

Max. range to one side5 m

With DALI interfaceNo

With remoteNo

Mounting typeOther

Nominal voltage

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK04

IP protection)IP65

Sensor type

Voltage typeAC

Teach function for response brightnessNo

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
