Bridging switchNo
With signal unitNo
Number of switching zones450.0
Response brightness100 to 2000 lx
Forced shutdownYes
Max. inrush current165 A
Max. presence range32.0 m²

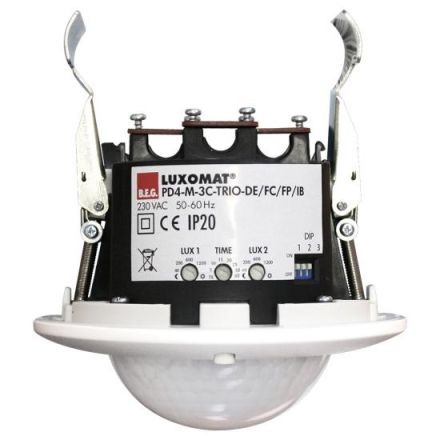

HABPD4-M-3C-TRIO-DE Luxomat
HAN92745
GTIN4007529927456
Dimming function with dimming insertNo
Alarm functionNo
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentNo
Surface finishFrosted
Diameter117.0 mm
Detection field diameter on floor24m
Remote controllableYes
Frequency50 to 60 Hz
Suitable for C-loadNo
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlYes
Halogen freeYes
Height100.0 mm
Max. duty cycle90 min
Max. range frontal8m
Max. range to one side12m
Max. switching capacity3000W
Min. duty cycle60s
With DALI interfaceNo
With remoteNo
Mounting typeOther
Extension inputYes
SurfaceUntreated
Optimal mounting height2.5m
RAL number (similar)9010.0
Impact resistanceIK04
IP protection)IP20
Voltage typeAC
Teach function for response brightnessYes
Temperature-25 to 50 °C
Animal corridorNo
TransparentNo
Staircase monitoringYes
Creep protection/rear field monitoringYes
NetworkableNo
MaterialPlastic
Material qualityOther
