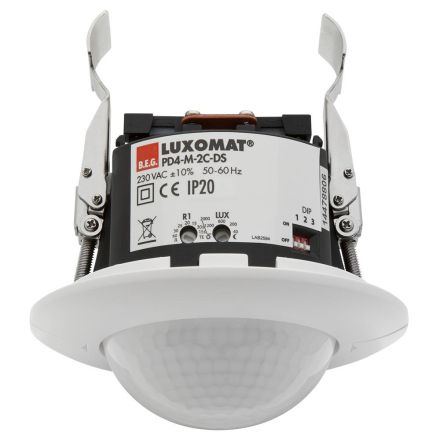

BEG 92760 PD4-M-2C-DS-DE Dual Supply Luxomat presence detector

BEG 92760 PD4-M-2C-DS-DE Dual Supply Luxomat presence detector

In stock

SKU: 389461

Price on request

€222.24

€0

Overview

BEG LUXOMAT® PD4-Master-2 phase presence detector for connection to two phases, 2 channels for switching light: The lighting system can be divided into two galvanically isolated groups. Extension of the detection area with another PD4-M-2C-DS-DE configured as a slave device. Voltage: 110 - 240 V AC 50 / 60 Hz, range: max. 24 m across, recommended installation height: 2.5 m, switching capacity: 2300 W, follow-up time: 15 s - 30 min, pulse, switch-on threshold: 10 - 2000 lux, optionally remote controllable with IR-PD-1C or IR adapter for smartphones.

Property	Value
Height:	100.0 mm
Version:	Presence detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	Plastic
Mounting type:	other
Response brightness:	20 to 2000 lx
Protection class (IP):	IP20
Max. switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	12 m
Suitable for wall mounting:	no
Min. duty cycle:	15 s
Max. Duty cycle:	60 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence range:	32.0 m²
Max. Inrush current:	165 A
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	24 m
Control current:	6 mA
Number of switching zones:	450.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	yes
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK04
Diameter:	117.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones450.0

Response brightness20 to 2000 lx

Forced shutdownYes

Max. inrush current165 A

Max. presence range32.0 m²

HABPD4-M-2C-DS-DE Dual Supply Luxomat

Manufacturer

HAN92760

GTIN4007529927609

Dimming function with dimming insertNo

Alarm functionNo

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

Version

Surface finishFrosted

Diameter117.0 mm

Detection field diameter on floor24m

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height100.0 mm

Max. duty cycle60 min

Max. range to one side12m

Max. switching capacity2300W

Min. duty cycle15s

With DALI interfaceNo

With remoteNo

Mounting typeOther

Extension inputYes

Nominal voltage

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK04

IP protection)IP20

Sensor type

Voltage typeAC

Teach function for response brightnessYes

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
