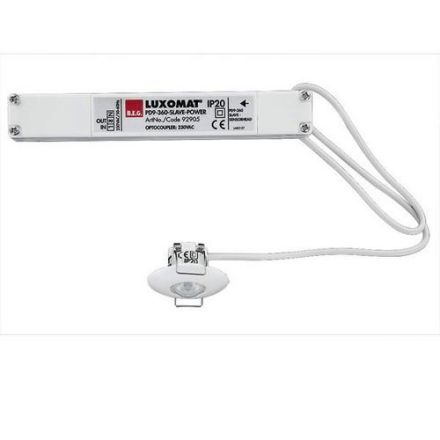

BEG 92905 Mini presence detector PD9-Slave, RAL 9010

BEG 92905 Mini presence detector PD9-Slave, RAL 9010

In stock

SKU: 1030963

Price on request

€80.73

€0

Overview

Mini slave device for extending the detection range of a master device, power unit fits through the hole for the detector in the ceiling (at 34 mm d. ), switching pulse to the master device when movement is detected regardless of the ambient brightness, compatible with 230 V master devices, for exceptions please see the respective master device., spring terminals for quick and easy installation in suspended ceilings and in lights, including 45 mm cover ring and cover slats

Property	Value
Height:	28.0 mm
Version:	motion detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	plastic
Mounting type:	other
Protection class (IP):	IP20
Voltage type:	AC
Max. Range to one side:	5 m
Suitable for wall mounting:	no
Creep-under protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	no
Max. Presence area:	12.0 m²
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	10 m
Control current:	1 mA
Number of switching zones:	78.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for Response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK03
Diameter:	45.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones78.0

Max. presence range12.0 m²

HABPD9 slave, RAL 9010

Manufacturer

HAN92905

GTIN4007529929054

Dimming function with dimming insertNo

Alarm functionNo

Response brightness adjustableNo

Antibacterial treatmentNo

Version

Surface finishFrosted

Diameter45.0 mm

Detection field diameter on floor10m

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height28.0 mm

Max. range to one side5 m

With DALI interfaceNo

With remoteNo

Mounting typeOther

Nominal voltage

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK03

IP protection)IP20

Sensor type

Voltage typeAC

Teach function for response brightnessNo

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
