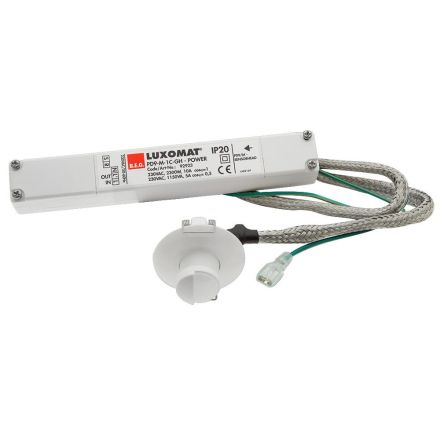

BEG 92923 PD9-M-1C-GH-DE white Luxomat presence detector

BEG 92923 PD9-M-1C-GH-DE white Luxomat presence detector

In stock

SKU: 389470

Price on request

€151.62

€0

Overview

Mini presence detector especially for high heights Ceiling installation version One channel for switching light Version as a master device Extension of the detection area with slave devices possible Manual switching via button possible Power unit fits through the hole for the detector in the ceiling (at 34 mm) Easy operation using the required remote control Spring clamps for easy and quick installation in suspended ceilings and in lights Including 45 mm cover ring and cover slat Factory setting 10 min and 500 lux

Property	Value
Height:	40.0 mm
Version:	Presence detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	Plastic
Mounting type:	other
Response brightness:	20 to 1000 lx
Protection class (IP):	IP20
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	1.75 m
Suitable for wall mounting:	no
Min. duty cycle:	300 s
Max. Duty cycle:	30 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. Inrush current:	165 A
Sensor type:	passive infrared
Optimal installation height:	6 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	6 m
Control current:	2 mA
Number of switching zones:	9.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for Response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	yes
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK04
Diameter:	45.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones9.0

Response brightness20 to 1000 lx

Forced shutdownYes

Max. inrush current165 A

HABPD9-M-1C-GH-DE white Luxomat

Manufacturer

HAN92923

GTIN4007529929238

Dimming function with dimming insertNo

Alarm functionNo

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

Version

Surface finishFrosted

Diameter45.0 mm

Detection field diameter on floor6m

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height40.0 mm

Max. duty cycle30 min

Max. range to one side1.75m

Max. switching capacity2300W

Min. duty cycle300s

With DALI interfaceNo

With remoteNo

Mounting typeOther

Extension inputYes

Nominal voltage

SurfaceUntreated

Optimal mounting height6m

RAL number (similar)9010.0

Impact resistanceIK04

IP protection)IP20

Sensor type

Voltage typeAC

Teach function for response brightnessNo

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
