Bridging switchNo
With signal unitNo
Number of switching zones78.0
Response brightness10 to 2000 lx
Forced shutdownYes
Max. inrush current165 A
Max. presence range12.0 m²

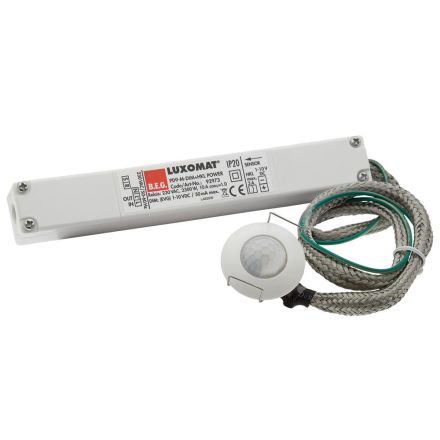

HABPD9-M-DIM+HKL-DE white Luxomat
HAN92973
GTIN4007529929733
Dimming function with dimming insertNo
Alarm functionYes
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentNo
Surface finishFrosted
Diameter45.0 mm
Detection field diameter on floor10m
Remote controllableYes
Frequency50 to 60 Hz
Suitable for C-loadNo
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlYes
Halogen freeYes
Height28.0 mm
Constant light controlYes
Max. duty cycle30 min
Max. range frontal6m
Max. range to one side5 m
Max. switching capacity2300W
Min. duty cycle60s
With DALI interfaceNo
With remoteNo
Mounting typeOther
Extension inputYes
SurfaceUntreated
Optimal mounting height2.5m
RAL number (similar)9010.0
Impact resistanceIK03
IP protection)IP20
Voltage typeAC
Teach function for response brightnessYes
Temperature-25 to 50 °C
Animal corridorNo
TransparentNo
Staircase monitoringYes
Creep protection/rear field monitoringYes
NetworkableNo
MaterialPlastic
Material qualityOther
