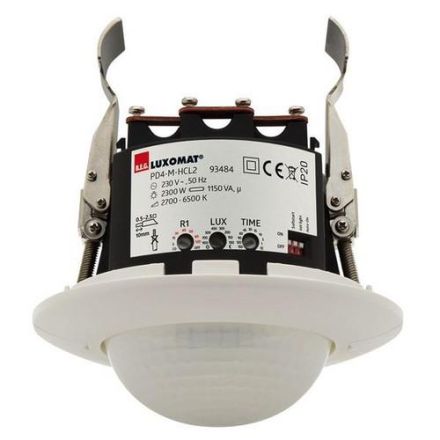

BEG 93484 Presence detector PD4-M-HCL2-DE

Bidirectional presence detector with integrated DALI application controller for energy-efficient and biologically effective light control (Human Centric Lighting), Integrated DALI power supply and 3 button inputs, Preset and freely adjustable HCL curves (12 anchor points per 24 hours), Adjustable communication mode broadcast (1 light zone, without addressing) or multicast (multiple light zones, HKL, with addressing), Dim-2-Warm: With a long button press, brightness and color temperature can be continuously adjusted at the same time, Calling up light scenes with accessories, Mixed light measurement using internal and external light sensors, External light sensor can be swiveled by 45 degrees, Powerful switching relay with various operating modes, such as cutoff function for DALI electronic ballasts, HKL, blackboard lighting., Fast commissioning and maintenance processes via smartphone/tablet app (Android, iOS) - no PC tool required, Extension of the detection range with up to 8 BEG BMS multisensors possible, Up to 64 DT8 driver luminaires (Colour Type Tc), doubling of the DALI output current with accessories may be required, Full range of functions can only be activated with the BLE-IR adapter and a smartphone or tablet (Android, iOS)
