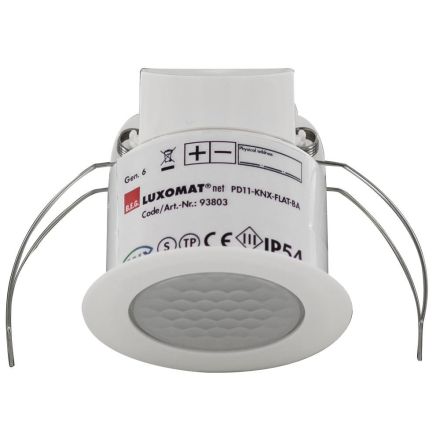

Particularly flat KNX presence detector with integrated KNX BUS coupler
Fully automatic operation
1x light (for switching), 1x HVAC block (independent)
Mixed light measurement using an internal light sensor
Various locking functions
Status LEDs can be activated/deactivated
Freely definable behavior when bus voltage returns
Parameterization from ETS 4 for integration into KNX systems
The product database for importing into the ETS database can be downloaded from the BEG homepage.
Spring terminals for quick and easy installation in suspended ceilings
Includes cover slats and clamping ring for installation in lights
With accessories, flush-mounted box installation on ceilings that still need to be plastered or exposed concrete is also possible.
| Property | Value |
| Optimal installation height: | 2.5 m |
| Color: | white |
| Design: | presence detector |
| Mounting type: | other |
| KNX bus system: | yes |
| Max. range to one side: | 4.5 m |
| Horizontal detection angle: | 0 to 360 ° |
| Min. duty cycle: | 1 s |
| Max. Duty cycle: | 1440 min |
| Vertical detection angle: | 0 to 180 ° |
| Detection field diameter on floor: | 9 m |
| Response brightness adjustable: | yes |
| Teach function for response brightness: | no |
| Self-learning switch-off delay: | no |
| Radio bus system: | no |
| LON bus system: | no |
| Powernet bus system: | no |
| Material: | Plastic |
| Material quality: | other |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 9010 |
| With bus connection: | yes |
| Extension input: | yes |
| Crawl-under protection/rear field monitoring: | yes |
| Animal corridor: | no |
| Staircase monitoring: | no |
| Transparent: | no |
| Bus system KNX radio: | no |
| Bidirectional radio: | no |
| Operating mode switch: | no |
