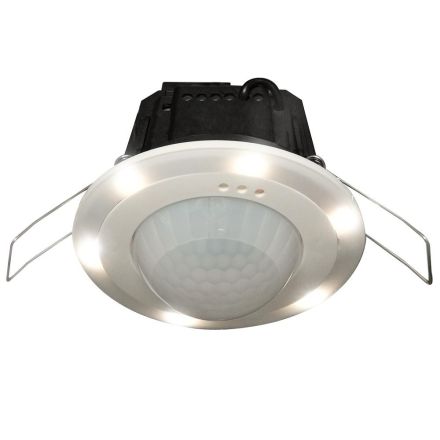

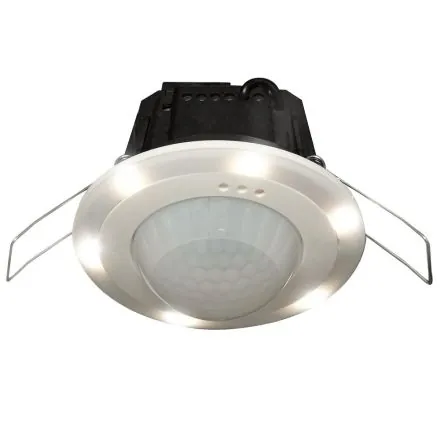

BEG 94055 PD2N-M-1C-LED-DE indoor motion and presence detector

BEG 94055 PD2N-M-1C-LED-DE indoor motion and presence detector

In stock

SKU: 389543

Price on request

€129.55

€0

Overview

Remote-controlled presence detector for indoor applications with a circular detection area, Integrated LED lighting as a separately adjustable orientation and night light, One channel for switching light, Numerous setting and reading options via the bidirectional BEG smartphone app, Extension of the detection area with up to 5 additional PD2N-M-1C-LEDs possible, Can be used both as a master device and as a slave device

Property	Value
Height:	85.0 mm
Version:	Presence detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	Plastic
Mounting type:	other
Response brightness:	10 to 2000 lx
Protection class (IP):	IP20
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	5 m
Suitable for wall mounting:	no
Min. duty cycle:	10 s
Max. Duty cycle:	1080 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-20 to 40 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence range:	12.0 m²
Max. frontal range:	6 m
Max. Inrush current:	165 A
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Surface:	untreated
Detection field diameter on floor:	10 m
Number of switching zones:	78.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	yes
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK03
Diameter:	84.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones78.0

Response brightness10 to 2000 lx

Forced shutdownYes

Max. inrush current165 A

Max. presence range12.0 m²

HABPD2N-M-1C-LED-DE indoor

Manufacturer

HAN94055

GTIN4007529940554

Dimming function with dimming insertNo

Alarm functionNo

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

Version

Surface finishFrosted

Diameter84.0 mm

Detection field diameter on floor10m

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height85.0 mm

Max. duty cycle1080 min

Max. range frontal6m

Max. range to one side5 m

Max. switching capacity2300W

Min. duty cycle10s

With DALI interfaceNo

With remoteNo

Mounting typeOther

Extension inputYes

Nominal voltage

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK03

IP protection)IP20

Sensor type

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 40 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic
