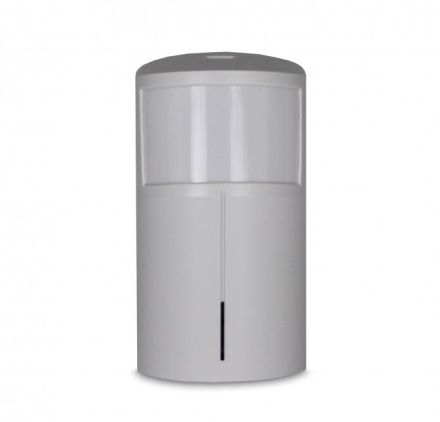

Passive infrared motion detector for monitoring indoor spaces. Detection range approx. 12m x 120° (curtain, telephoto and pet lenses optionally available as accessories). Wall or corner mounting at a height of 2 - 2.5m. Alarm and sabotage relay, NC, max. 50mA / 60V. Operating voltage: 12V DC, power consumption: 10mA (rest), 35mA (alarm). Dimensions: 60 x 110 x 55mm. Can be connected to the System 9000 bus via an input module 9000E1, 9000E16 or 9000EA4 (max. 5 contacts per bus input). The bus input module 9000E1 can be installed in the housing.
