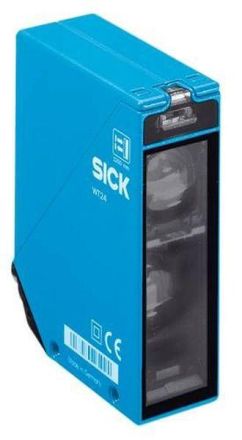

Sick 1016820 WT24-2R25 reflection photoelectric sensor

Sick 1016820 WT24-2R25 reflection photoelectric sensor

In stock

SKU: 905971

Price on request

€551.49

€0

Overview

Compact light barriers, W24-2, switching distance max.: 100 mm ... 1,200 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: relay, switching type: light/dark switching, connection type: terminal connection with M16 screw connection, light transmitter: LED, setting: potentiometer, communication interface: -

Property	Value
Ambient temperature:	-40 °C
Design of the switching output:	Relay contact
With restart lock:	no
Material of the Housing:	Metal
Switching frequency:	10 Hz
Width of the sensor:	27 mm
With communication interface RS-232:	no
With communication interface DeviceNet:	no
Analog output -10 V ... +10 V:	no
With communication interface INTERBUS:	no
Design of the electrical connection:	Terminal
Button function:	light/dark switching
Sensor length:	65 mm
Equipment protection class:	Protection class 2
With analog communication interface:	no
With SSI communication interface:	no
With RS-422 communication interface:	no
Analog output 0 V ... 10 V:	no
With monitoring function downstream devices:	no
With PROFIBUS communication interface:	no
Suitable for safety functions:	no
With CANOpen communication interface:	no
With AS-Interface communication interface:	no
Housing design:	Cuboid
With other analog output:	no
Pre-failure message:	no
Height of the sensor:	87.5 mm
Material of the optical surface:	Plastic
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
Light spot:	40 mm²
With RS-485 communication interface:	no
Response time:	10 ms
Reflector included included:	no
Analog output 0 mA ... 20 mA:	no
With communication interface SSD:	no
Max. switching distance:	100 mm
Type of voltage:	AC/DC
With time function:	no
Protection class (IP):	IP67
