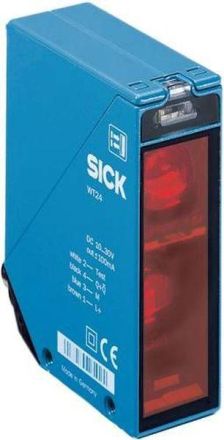

Sick 1017885 WT24-2B420 Diffuse reflection sensor

Sick 1017885 WT24-2B420 Diffuse reflection sensor

In stock

SKU: 906186

Price on request

€520.02

€0

Overview

Compact light barriers, W24-2, max. switching distance: 100 mm ... 2,500 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: NPN, PNP, switching type: light/dark switching, connection type: connector M12, 4-pin, light transmitter: LED, setting: potentiometer, communication interface: -

Property	Value
Max. Output current:	100 mA
Button function:	light/dark switching
Lenght of sensor:	65 mm
Width of sensor:	27 mm
Height of sensor:	87.5 mm
With analog communication interface:	no
With RS-422 communication interface:	no
Max. Switching distance:	100 mm
Response time:	0.5 ms
Reflector included in delivery:	no
Analog output -10 V ... +10 V:	no
With Ethernet communication interface:	no
Analog output 0 mA ... 20 mA:	no
With SSD communication interface:	no
With other analog output:	no
With communication interface SSI:	no
With monitoring function of downstream devices:	no
Analog output 0 V ... 10 V:	no
With communication interface RS-232:	no
With communication interface AS-Interface:	no
With restart lock:	no
Analog output 4 mA ... 20 mA:	no
With communication interface PROFIBUS:	no
With communication interface RS-485:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With communication interface CANOpen:	no
Suitable for safety functions:	no
Design of the electrical connection:	Connector M12
Design of the switching output:	NPN
Design of the switching function:	other
Equipment protection class:	Protection class 2
Housing design:	Cuboid
Light type:	Infrared light
Light spot:	80 mm²
Switching frequency:	1000 Hz
Type of voltage:	DC
Ambient temperature:	-40 °C
Pre-failure warning:	no
Material of the optical surface:	plastic
Material of the housing:	metal
With time function:	no
