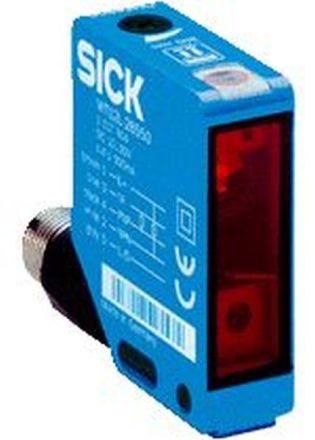

Sick 1017904 WT12L-2B550 M12 5-pin diffuse reflection sensor

In stock
SKU: 905489
€821.09
Into a basketIn the basketGo

Overview

Small light barriers, W12-2 Laser, max. switching distance: 30 mm ... 200 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, NPN, switching type: light switching, dark switching, connection type: M12 connector, 5-pin, light transmitter: laser, setting: potentiometer, laser class: 2, included in delivery: 2 x clamp holder BEF-KH-W12, including screws

Property Value
Scanning range: 30 to 200 mm
Max. Output current: 100 mA
Button function: light switching
Protection class (IP): IP67
Length of sensor: 41.5 mm
Width of sensor: 15 mm
Height of sensor: 49 mm
With analog communication interface: no
With RS-422 communication interface: no
Max. Switching distance: 30 mm
Response time: 0.2 ms
Reflector included in delivery: no
Analog output -10 V ... +10 V: no
With Ethernet communication interface: no
Analog output 0 mA ... 20 mA: no
With SSD communication interface: no
With other analog output: no
With communication interface SSI: no
With monitoring function of downstream devices: no
Analog output 0 V ... 10 V: no
Wavelength of the sensor: 650 nm
With communication interface RS-232: no
With communication interface AS-Interface: no
With restart lock: no
Analog output 4 mA ... 20 mA: no
With communication interface PROFIBUS: no
With communication interface RS-485: no
With communication interface DeviceNet: no
With communication interface INTERBUS: no
With communication interface CANOpen: no
Suitable for safety functions: no
Design of the electrical Connection: Connector M12
Design of the switching output: PNP
Design of the switching function: other
Equipment protection class: Protection class 3
Housing design: Cuboid
Laser protection class: Class 2
Light spot: 0.2 mm²
Switching frequency: 2500 Hz
Voltage type: DC
Ambient temperature: -10 °C
Pre-failure warning: no
Material of the optical surface: plastic
Material of the housing: metal
With time function: no

Characteristics

Design of the switching functionOther
Switching frequency2500 Hz
HABWT12L-2B550 M12 5-pin
ManufacturerSick
HAN1017904
GTIN4047084105531
Design of the switching outputPNP
Design of the electrical connectionConnector M12
Width of the sensor15 mm
Suitable for security functionsNo
Housing designCuboid
Height of the sensor49 mm
Length of the sensor41.5 mm
IP protection)IP67
Voltage typeDC
Ambient temperature-10°C
Housing materialMetal
