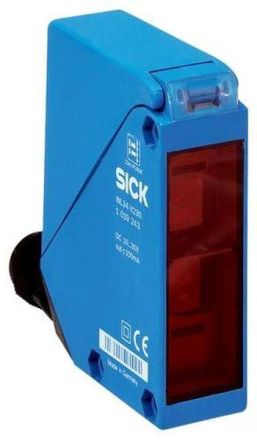

Sick 1019247 WL34-V530 reflective photoelectric sensor

In stock
SKU: 906373
€214.84
Into a basketIn the basketGo

Overview

Compact light barriers, W34, switching distance max.: 0.03 m ... 22 m, sensor principle: reflection light barrier, detection principle: double lens, switching output: NPN, PNP, switching type: light switching, dark switching, connection type: connector M12, 5-pin, light transmitter: LED, setting: potentiometer, communication interface: -

Property Value
Suitable for safety functions: no
Length of the sensor: 70 mm
Height of the sensor: 92 mm
Width of the Sensors: 27 mm
Design of the electrical connection: M12 connector
Equipment protection class: Protection class 2
Type of voltage: DC
Ambient temperature: -40 °C
Response time: 0.5 ms
With monitoring function for downstream devices: no
Sensor wavelength: 660 nm
With restart lock: no
Protection class (IP): IP67

Characteristics

HABWL34-V530
ManufacturerSick
HAN1019247
GTIN4047084124730
Design of the electrical connectionConnector M12
Width of the sensor27 mm
Suitable for security functionsNo
Height of the sensor92 mm
Length of the sensor70 mm
IP protection)IP67
Voltage typeDC
Ambient temperature-40°C
Sick 1019247 WL34-V530 reflective photoelectric sensor
