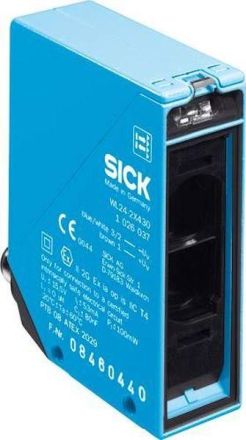

Sick 1026037 WL24-2X430 reflective photoelectric sensor

In stock
SKU: 906370
€873.09
Into a basketIn the basketGo

Overview

Compact light barriers, W24-2 Ex, switching distance max.: 0 m ... 22 m, sensor principle: reflection light barrier, switching output: NAMUR, switching type: light switching, connection type: connector M12, 4-pin, setting: potentiometer, info: Ex II 2G Ex ia op is IIC T4 Gb in accordance with Directive 2014/34/EU PTB 08 ATEX 2029 Within the framework of Directive 2014/34/EU (ATEX) and DIN EN ISO/IEC 80079-34, we would like to point out that the traceability of the ordered device to your customer is your responsibility (documentation of your customer and the associated product data, such as item no., date code, serial no.)

Property Value
Max. switching distance: 22000 mm
Button function: light switching
Protection class (IP): IP67
Height of sensor: 87.5 mm
Width of sensor: 27 mm
Length of sensor: 65 mm
Reaction time: 10 ms
Switching frequency: 50 Hz
Laser protection class: other
Type of voltage: DC
Material of the housing: metal
With communication interface SSI: no
With communication interface AS-Interface: no
With time function: no
With communication interface DeviceNet: no
With communication interface INTERBUS: no
With analog communication interface: no
With Ethernet communication interface: no
Analog output 4 mA ... 20 mA: no
With other analog output: no
With PROFIBUS communication interface: no
Reflector included in delivery: no
Suitable for safety functions: no
Analog output 0 mA ... 20 mA: no
Analog output -10 V ... +10 V: no
With communication interface SSD: no
With communication interface CANOpen: no
With communication interface RS-485: no
Analog output 0 V ... 10 V: no
Light type: Red light unpolarized
Material of the optical surface: Glass
With communication interface RS-422: no
With communication interface RS-232: no
Design of the electrical connection: M12 connector
Design of the switching output: NAMUR
Equipment protection class: Protection class 2
Housing design: Cuboid
Ambient temperature: -20 °C
With monitoring function of downstream devices: no
Pre-failure warning: no
With restart lock: no

Characteristics

Switching frequency50 Hz
HABWL24-2X430
ManufacturerSick
HAN1026037
GTIN4047084173356
Design of the switching outputNAMUR
Design of the electrical connectionConnector M12
Width of the sensor27 mm
Suitable for security functionsNo
Housing designCuboid
Height of the sensor87.5 mm
Length of the sensor65 mm
IP protection)IP67
Voltage typeDC
Ambient temperature-20°C
Housing materialMetal
