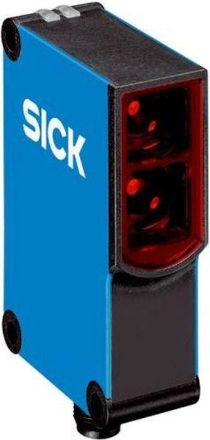

Sick 1027750 WTB27-3R2641 rectangular connector 6-pin diffuse reflection sensor

Sick 1027750 WTB27-3R2641 rectangular connector 6-pin diffuse reflection sensor

In stock

SKU: 905576

Price on request

€625.60

€0

Overview

Compact light barriers, W27-3, switching distance max.: 30 mm ... 1,100 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: relay, switching type: light/dark switching, connection type: connector Q6, 6-pin, AC/UC-coded, light transmitter: LED, setting: potentiometer

Property	Value
Scanning range:	30 to 1100 mm
Button function:	light/dark switching
Protection class (IP):	IP65
Length of Sensors:	54 mm
Width of the sensor:	24.6 mm
Height of the sensor:	80.6 mm
With analog communication interface:	no
With RS-422 communication interface:	no
Max. Switching distance:	30 mm
Response time:	10 ms
Reflector included in delivery:	no
Analog output -10 V ... +10 V:	no
With Ethernet communication interface:	no
Analog output 0 mA ... 20 mA:	no
With SSD communication interface:	no
With other analog output:	no
With communication interface SSI:	no
With monitoring function of downstream devices:	no
Analog output 0 V ... 10 V:	no
Wavelength of the sensor:	660 nm
With communication interface RS-232:	no
With communication interface AS-Interface:	no
With restart lock:	no
Analog output 4 mA ... 20 mA:	no
With communication interface PROFIBUS:	no
With communication interface RS-485:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With communication interface CANOpen:	no
Suitable for safety functions:	no
Design of the electrical Connection:	other
Design of the switching output:	relay contact
Equipment protection class:	Protection class 2
Housing design:	Cuboid
Light spot:	15 mm²
Switching frequency:	10 Hz
Type of voltage:	AC/DC
Ambient temperature:	-40 °C
Pre-failure warning:	no
Material of the optical surface:	Plastic
Material of the housing:	Plastic
With time function:	no
