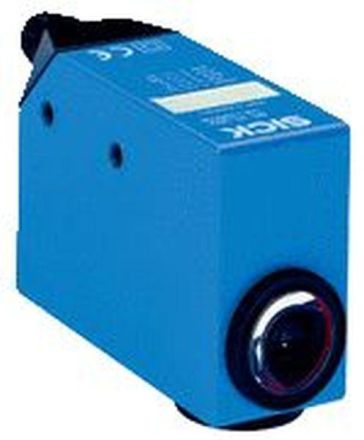

Sick 1028224 CS81-P1112 color sensor

In stock

SKU: 905461

Price on request

€1,269.96

€0

Overview

Color sensors, CS8, communication interface: -, light transmitter: LED, RGB, output (channel): 1 color, scanning range: 12.5 mm, switching output: PNP, light spot size: 2 mm x 4 mm, connection type detail: connector M12, 5-pin, light spot position: lengthwise

Property	Value
Analog output 0 mA ... 20 mA:	no
Length of the sensor:	53 mm
Analog output -10 V ... +10 V:	no
Analog output 4 mA ... 20 mA:	no
Width of the sensor:	30.4 mm
Height of the sensor:	80 mm
Analog output 0 V ... 10 V:	no
With other analog output:	no
Type of voltage:	DC
Max. Output current:	100 mA
Switching frequency:	6000 Hz
Design of the electrical connection:	M12 connector
Design of the switching output:	PNP
Housing material:	Zinc
Housing design:	Cuboid
Light spot:	2 mm²
Equipment protection class:	Protection class 2
With blanking function:	no
With fiber optic connection:	no
With interchangeable lens:	no
With time function:	no
Ambient temperature:	-10 °C
Protection class (IP):	IP67
