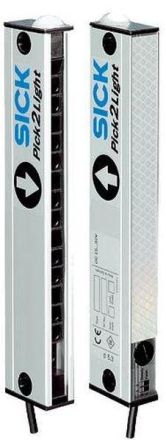

Sick 1029130 PLG3-270F431 safety light curtain

In stock

SKU: 906202

Price on request

€888.15

€0

Overview

Switching automation light grids, PLG, operating range: 1.3 m, beam spacing: 30 mm, monitoring height: 270 mm, switching output: PNP, response time: < 80 ms, connection type: cable with M12 connector, 4-pin

Property	Value
Protective field height:	349.8 mm
Suitable for safety functions:	no
Length of the sensor:	36.6 mm
Height of the sensor:	349.8 mm
Width of the sensor:	19.2 mm
Blanking possible:	no
Design of the electrical connection:	M12 connector
Equipment protection class:	Protection class 3
Cascadable:	no
Type of voltage:	DC
Ambient temperature:	-10 °C
With muting function:	no
Override possible:	no
Response time:	80 ms
Reduced resolution:	no
With beam coding:	no
Clock control possible:	no
With monitoring function for downstream devices:	no
Sensor wavelength:	650 nm
With restart lock:	no
