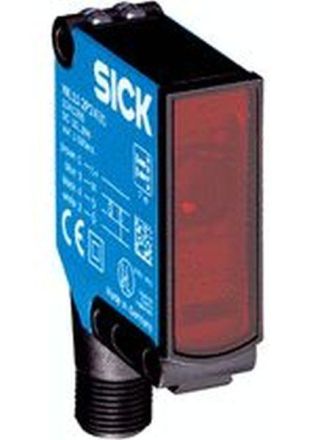

Sick 1041385 WL11-2P2430 reflective photoelectric sensor

Sick 1041385 WL11-2P2430 reflective photoelectric sensor

In stock

SKU: 905528

Price on request

€136.84

€0

Overview

Small light barriers, W11-2, max. switching distance: 0.15 m ... 10 m, sensor principle: reflection light barrier, detection principle: double lens, switching output: PNP, switching type: light/dark switching, connection type: M12 connector, 4-pin, light transmitter: LED, setting: none

Property	Value
Rated switching distance:	150 mm
Max. switching distance:	10000 mm
Max. Output current:	100 mA
Button function:	light/dark switching
Protection class (IP):	IP66
Height of the sensor:	48.5 mm
Width of the sensor:	15.6 mm
Length of the sensor:	42 mm
Reaction time:	2.5 ms
Switching frequency:	200 Hz
Laser protection class:	other
Type of voltage:	DC
Material of the housing:	plastic
With communication interface SSI:	no
With communication interface AS-Interface:	no
With time function:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With analog communication interface:	no
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
With other analog output:	no
With PROFIBUS communication interface:	no
Reflector included in delivery:	no
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Analog output -10 V ... +10 V:	no
With communication interface SSD:	no
With communication interface CANOpen:	no
With communication interface RS-485:	no
Analog output 0 V ... 10 V:	no
Light type:	Red light unpolarized
Material of the optical surface:	Plastic
With communication interface RS-422:	no
With communication interface RS-232:	no
Design of the electrical connection:	Connector M12
Design of the switching output:	PNP
Equipment protection class:	Protection class 2
Housing design:	Cuboid
Ambient temperature:	-30 °C
With monitoring function of downstream devices:	no
Pre-failure warning:	no
Sensor wavelength:	640 nm
With restart lock:	no
