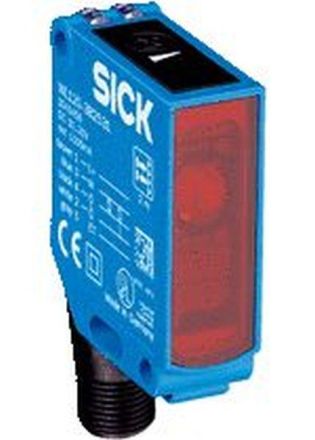

Sick 1041456 WL12G-3B2531 reflective photoelectric sensor

Sick 1041456 WL12G-3B2531 reflective photoelectric sensor

In stock

SKU: 905490

Price on request

€320.37

€0

Overview

Small light barriers, W12G, max. switching distance: 0 m ... 4 m, sensor principle: reflection light barrier, detection principle: autocollimation, switching output: PNP, NPN, switching type: light switching, dark switching, connection type: connector M12, 5-pin, light transmitter: LED, setting: potentiometer, communication interface: -, included in delivery: 2 x clamp holder BEF-KH-W12, incl. screws

Property	Value
Max. switching distance:	4000 mm
Max. Output current:	100 mA
Rated control supply voltage Us at DC:	10 to 30 V
Button function:	light/dark switching
Protection class (IP):	IP66
Height of sensor:	48.5 mm
Width of sensor:	15.6 mm
Length of sensor:	42 mm
Reaction time:	0.33 ms
Switching frequency:	1500 Hz
Laser protection class:	other
Type of voltage:	DC
Material of the housing:	metal
With communication interface SSI:	no
With communication interface AS-Interface:	no
With time function:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With communication interface Analog:	no
With communication interface Ethernet:	no
Analog output 4 mA ... 20 mA:	no
With other analog output:	no
With communication interface PROFIBUS:	no
Reflector included in delivery:	no
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Analog output -10 V ... +10 V:	no
With communication interface SSD:	no
With communication interface CANOpen:	no
With communication interface RS-485:	no
Analog output 0 V ... 10 V:	no
Light type:	Red light unpolarized
Material of the optical surface:	Plastic
With communication interface RS-422:	no
With communication interface RS-232:	no
Design of the electrical connection:	Connector M12
Design of the switching output:	PNP/NPN
Equipment protection class:	Protection class 2
Housing design:	Cuboid
Ambient temperature:	-40 °C
With monitoring function for downstream devices:	no
Pre-failure warning:	no
Sensor wavelength:	640 nm
With restart lock:	no
