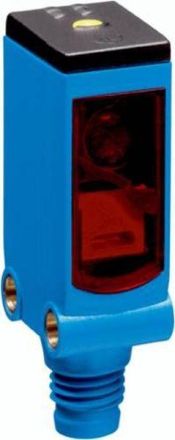

Sick 1042077 WL4S-3P2132 reflective photoelectric sensor

Sick 1042077 WL4S-3P2132 reflective photoelectric sensor

In stock

SKU: 905555

Price on request

€193.88

€0

Overview

Miniature light barriers, W4S-3, max. switching distance: 0 m ... 5 m, sensor principle: reflection light barrier, detection principle: autocollimation, switching output: PNP, switching type: light switching, connection type: connector M8, 3-pin, light transmitter: PinPoint LED, setting: teach-in button, communication interface: -

Property	Value
Range of the protective field:	5 m
Max. Output current:	100 mA
Button function:	light switching
Protection class (IP):	IP67
Length of sensor:	17.3 mm
Width of sensor:	12.2 mm
Height of sensor:	41.8 mm
With analog communication interface:	no
With RS-422 communication interface:	no
Max. Switching distance:	5000 mm
Response time:	0.5 ms
Reflector included in delivery:	no
Analog output -10 V ... +10 V:	no
With Ethernet communication interface:	no
Analog output 0 mA ... 20 mA:	no
With SSD communication interface:	no
With other analog output:	no
With communication interface SSI:	no
With monitoring function of downstream devices:	no
Analog output 0 V ... 10 V:	no
Wavelength of the sensor:	650 nm
With communication interface RS-232:	no
With communication interface AS-Interface:	no
With restart lock:	no
Analog output 4 mA ... 20 mA:	no
With communication interface PROFIBUS:	no
With communication interface RS-485:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With communication interface CANOpen:	no
Suitable for safety functions:	no
Design of the electrical Connection:	M8 connector
Switching output design:	PNP
Equipment protection class:	Protection class 3
Housing design:	Cuboid
Laser protection class:	other
Light type:	Red light unpolarized
Switching frequency:	1000 Hz
Type of voltage:	DC
Ambient temperature:	-40 °C
Pre-failure warning:	no
Material of the optical surface:	Plastic
Material of the housing:	Plastic
With time function:	no
